Datang Finned Tube Empowers a Large-Scale LPG Station in Vietnam: Custom High-Efficiency Vaporizer Successfully Delivered

1. Understanding the Client’s Pain Points: Critical Demand for Reliable LPG Infrastructure

Driven by the rapid growth of industrial manufacturing and domestic energy needs in Southeast Asia, LPG terminal stations across Vietnam are facing unprecedented continuous gas supply pressures. Prior to partnering with us, a major client based in southern Vietnam encountered severe performance bottlenecks with their legacy vaporization equipment at their terminal site.

Due to the high relative humidity typical of the region, conventional ambient air vaporizers suffered from thick frost accumulation during prolonged high-flow operations. This frosting caused a sharp drop in thermal efficiency. In critical instances, unvaporized liquid LPG bypassed the heat exchange loop and entered downstream distribution pipelines, creating severe operational hazards. To resolve this, the client’s engineering team launched a global search for a manufacturer specializing in high-surface-area finned tube production and ASME-grade pressure vessel welding. Datang Finned Tube won the contract based on its technical superiority and proven export track record.

2. Tailored Technical Solution by Datang Finned Tube

To withstand Vietnam’s hot, humid, and coastal high-salt-mist climate, and to meet the continuous high-load demand, the engineering experts at Datang Finned Tube developed a fully optimized solution for this vaporizer for lpg station project:

• Proprietary High-Star Fin Tube Geometry: The assembly utilizes large-diameter, heavy-wall aluminum alloy star-finned tubes. This profile drastically increases the effective heat transfer area per unit, optimizing natural convection even under low-wind conditions.

• Optimized Flow Distribution & Manifold Bridging: An interleaved fluid flow configuration ensures liquid LPG divides equally among all parallel finned tube groups. This precise phase-change volume management entirely eliminates liquid carryover at the discharge manifold.

• Heavy-Duty Anti-Corrosion Coating: To protect the aluminum structures against coastal salt-spray corrosion, the complete system underwent premium anodization and anti-corrosive coating treatments, substantially extending the operational lifecycle of the vaporizer for lpg station.

• Safety Redundancy: We equipped the client with a “one-use, one-standby” dual-path gas supply system. This ensures that the LPG gas station maintains a safe and uninterrupted gas supply during equipment maintenance or extreme peak demand.

High-quality ambient air vaporizer finished product for Vietnam LPG gas station

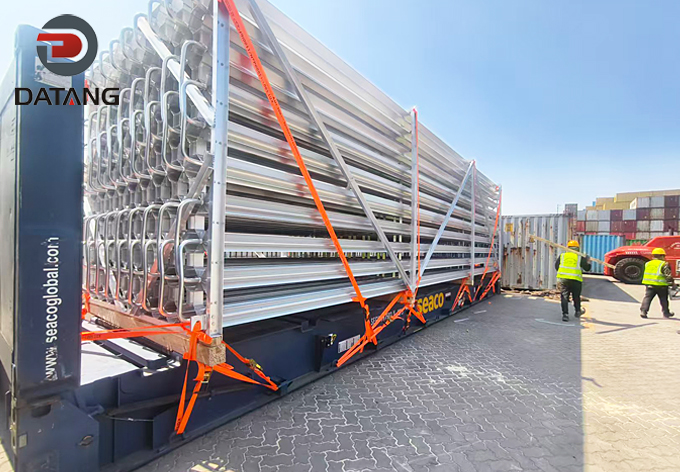

LPG vaporizer for gas station vietnam finished

3. Rigorous Quality Control & Manufacturing Process

At Datang Finned Tube, quality is an unyielding metric governed by strict non-destructive testing (NDT) protocols. Throughout the fabrication of this specialized vaporizer for lpg station, the following QC milestones were successfully cleared:

1. 100% Raw Material Inspection: Seamless inner steel liners and external aluminum finned tubes underwent comprehensive Ultrasonic Testing (UT) and Eddy Current Testing (ECT) to eliminate internal voids or micro-fissures.

2. Automated TIG Welding: All critical manifold joints and return bends were welded by certified multi-qualified welders using automated robotic TIG setups, yielding smooth, full-penetration welds with optimal grain structure.

3. High-Pressure Hydrostatic & Pneumatic Proofing: Following international pressure vessel codes, the completed vaporizer for lpg station was subjected to a hydrostatic test at 1.5 times the maximum design pressure for 24 hours with zero pressure drop, accompanied by high-sensitivity pneumatic bubble testing to guarantee a permanent zero-leakage seal.

4. Export Packaging & Heavy-Duty Logistics Log

Industrial machinery destined for international maritime transit requires exceptional packaging engineering. To ensure this high-performance vaporizer for lpg station arrived in Vietnam completely free of structural or cosmetic defects, Datang Finned Tube implemented a multi-layered logistics protocol:

The unit was anchored onto a custom-built, heavy-duty structural steel skid base, rigidly welded to prevent any shifting inside the ocean container. All connecting flanges and sensitive instrument ports were hermetically sealed with industrial-grade heavy plastic blanking plugs. The entire assembly was wrapped in multiple layers of heavy-duty shock-absorbing bubble wrap and thick industrial stretch film, with desiccant packs distributed inside to neutralize sea-freight humidity. Container loading was executed inside our factory by a dedicated rigging crew, with comprehensive photo logs shared with the client in real time.

Custom-made Vaporizers for a Vietnamese Client Being Loaded into Containers

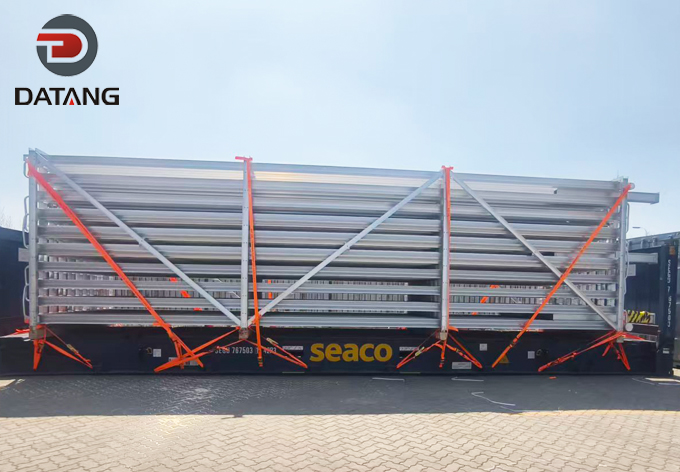

Vaporizer hoisted into the container

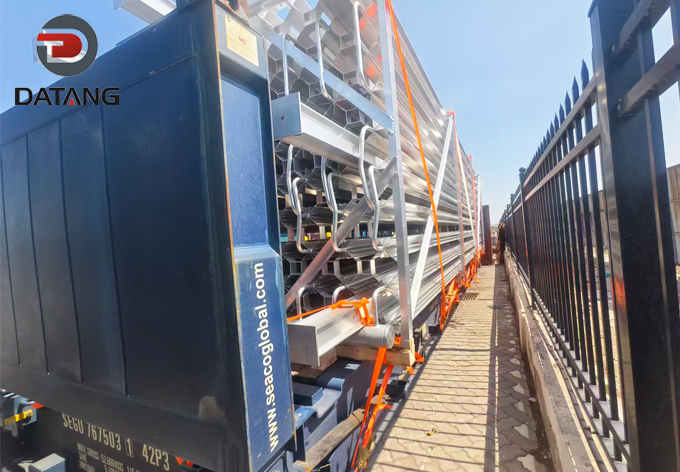

Vaporizer Heavy-Duty Frame Anchoring and Reinforcement

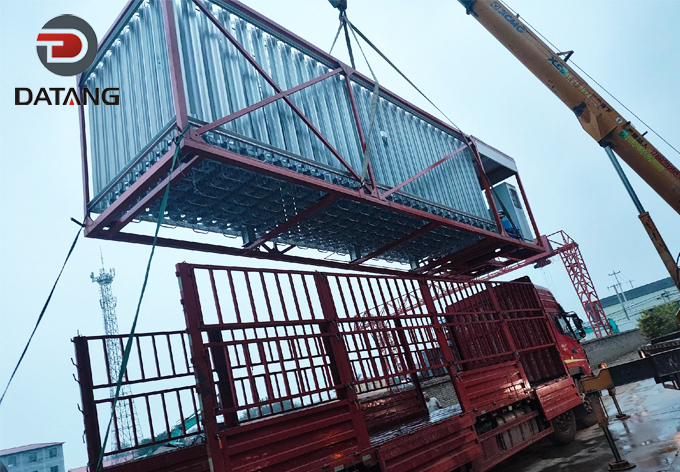

Secure export packing and container loading log of vaporizer for LPG station

5. Client Feedback & Project Conclusion

Upon arrival at the site in southern Vietnam, the custom vaporizer for lpg station manufactured by Datang Finned Tube was successfully commissioned under our remote technical guidance. It passed all local regulatory safety inspections on the first attempt and was integrated into the active terminal loop. After months of continuous operation, the Station Director provided an outstanding evaluation:

“The performance of this new vaporizer for lpg station has exceeded our benchmarks. Even during peak evening demand with maximum ambient humidity, frost formation remains negligible, and the discharge pressure and temperature stay perfectly stable. Datang Finned Tube delivered the ideal solution for our station’s modernization. Their technical expertise and meticulous export packaging gave us complete peace of mind.”

The seamless execution of this project further establishes Datang Finned Tube as a premier choice for specialized heat exchange systems across Southeast Asia. By delivering engineered reliability for specialized settings like this vaporizer for lpg station, we continue our commitment to providing premium solutions for the global oil, gas, and petrochemical sectors.

Whether in Vietnam, Southeast Asia, or global markets, Datang Finned Tube is committed to providing the most reliable heat exchange solutions for our clients. If you are looking for efficient and safe vaporizers for your LPG gas station projects, please feel free to contact us for detailed technical proposals and quotations.
