Heat Exchanger Tube Bundle for Kazakhstan Petrochemical Project

Efficient Thermal Transfer Empowering Central Asia’s Energy Infrastructure

In multinational industrial collaborations, harsh operational environments serve as the ultimate litmus test for the quality of thermal equipment. Recently, Datang Finned Tube successfully completed the production and delivery of a customized heat exchanger tube bundle for a prominent, large-scale engineering company in Kazakhstan. As a core supplier for energy and petrochemical engineering projects in Central Asia, the client demanded exceptionally high thermal efficiency and extreme low-temperature shock resistance for this specific heat exchanger tube bundle procurement.

With robust R&D capabilities and deep manufacturing expertise, Datang Finned Tube not only perfectly met all contractual standards but also earned high praise during a rigorous, on-site technical audit conducted by the client.

Client Background & Core Challenges

Kazakhstan’s winter climate is extremely harsh, and its industrial operating conditions are highly complex. This posed a dual challenge for the core components within their oil refining and petrochemical units—the heat exchanger tube bundle:

1. Extreme Temperature Fluctuations: The heat exchanger tube bundle must maintain structural stability under severe temperature swings to eliminate any risk of tube-to-tubesheet leakage.

2. High-Corrosion & High-Pressure Environments: Petrochemical media require near-faultless industrial standards regarding the materials and welding craftsmanship of the heat exchanger tube bundle.

3. Rigorous Technical Audit: The client dispatched a team of professional engineers to our factory for a comprehensive, two-day on-site audit focusing on raw materials, high-frequency welding processes, and non-destructive testing (NDT) of the heat exchanger tube bundle.

Why Standard Tube Bundles Fall Short

1. The material needed to withstand significant thermal expansion and contraction to prevent weld cracking.
2. The contact thermal resistance between the fin and the base tube had to be extremely low to ensure heat exchange efficiency in low temperatures.
3. The delivery timeline was tight and had to align with the fast-paced on-site construction schedule.

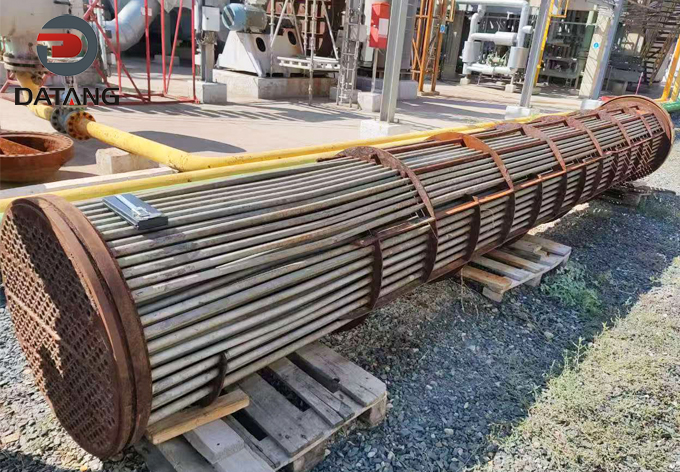

Kazakhstan Heat Exchanger Tube Bundle — Pre-Replacement

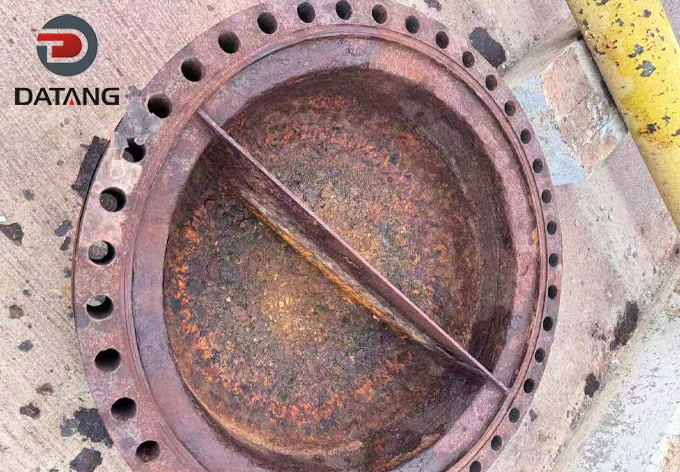

Kazakhstan Petrochemical Project Shell-and-Tube Heat Exchanger Tubesheet — Pre-Replacement

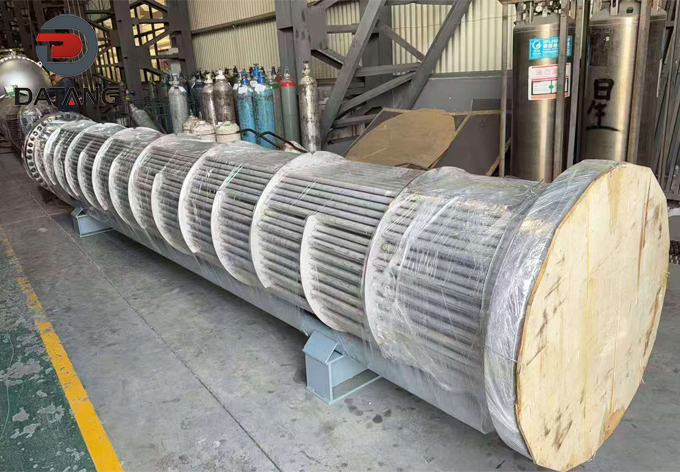

Heat Exchanger Tube Bundle for a Petrochemical Project in Kazakhstan

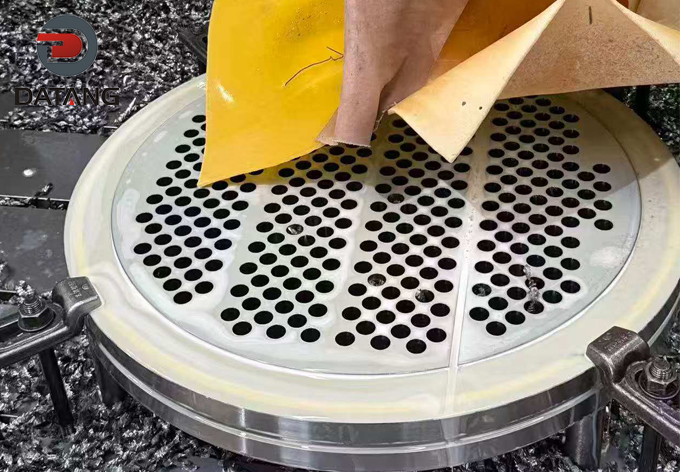

Tube Sheets for Heat Exchanger Tube Bundles in a Kazakhstan Petrochemical Project

Customized Solution by Datang Finned Tube

To address the unique challenges of the Kazakh engineering company, the technical team at Datang Finned Tube tailored a high-performance heat exchanger tube bundle solution:

1. Selecting Premium Materials to Fortify Structural Strength

We selected top-grade seamless steel pipes as the base tubes for the heat exchanger tube bundle. Combined with advanced fin processing technology, this not only significantly increased the heat transfer area per unit of the heat exchanger tube bundle but also enhanced the fatigue resistance at the connection joint between the tubes and the tubesheet.

2. Stringent Quality Control for Zero-Defect Delivery

Under the direct supervision of the Kazakh client, we conducted strict hydrostatic tests, pull-out force tests, and magnetic particle testing (MPT) on this batch of heat exchanger tube bundles. Every single tube assembled into the heat exchanger tube bundle were manufactured using advanced high-frequency welding technology. The tight bond between the fins and the base tube resulted in near-zero contact thermal resistance, significantly accelerating heat transfer and perfectly meeting the client’s demand for energy efficiency.

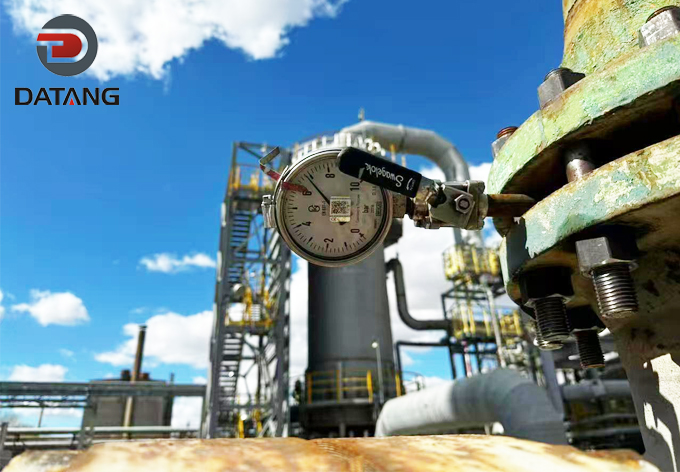

Hydrostatic pressure test of heat exchanger tube bundle

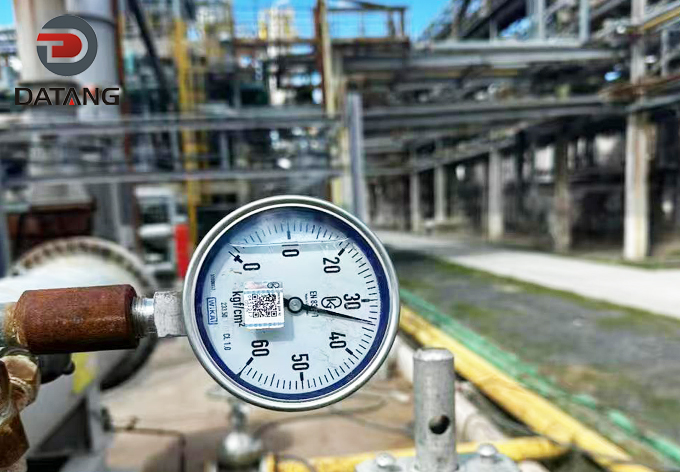

Datang Finned Tube: Hydrostatic Testing of Heat Exchanger Tube Bundles for a Chemical Project in Kazakhstan

3. Precision Process Control Flow

From the processing of high-frequency welded finned tubes to the final tube insertion, expansion, welding, and overall frame assembly of the heat exchanger tube bundle, Datang Finned Tube strictly adhered to the ISO 9001 international quality management system, showcasing our expertise as a premium manufacturer from China’s premier pipeline and tube hub.

4.Precision Tolerance Control

Considering the ease of on-site installation, we strictly controlled the dimensional tolerances of each heat exchanger tube bundle. This ensured “zero-error” rapid assembly once the products arrived at the site in Kazakhstan.

Heavy-Duty Packaging for Heat Exchanger Tube Bundles

1.Anti-Rust & Moisture-Proof Technology

To counter the variable climates of long-distance land transport to Kazakhstan, we followed by a high-density, vacuum-sealed moisture-proof film. This ensures that the heat exchanger tube bundle remains bone-dry and completely rust-free during transit and storage.

2.Heavy-Duty Steel Structural Support Frame

As a heavy and high-precision component, the heat exchanger tube bundle requires robust structural anchoring. Datang Finned Tube integrates customized, reinforced steel structural cradles inside the packaging to rigidly lock the bundle in place. No matter how bumpy the road conditions, this completely eliminates the risk of tube bundle deformation, fin damage, or tubesheet distortion.

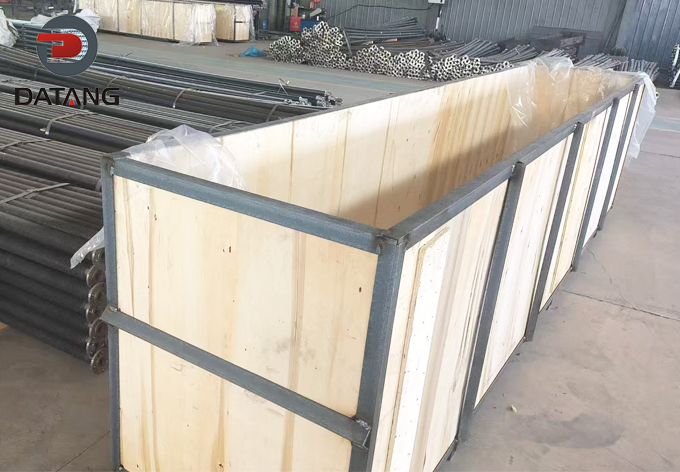

Heavy duty export wooden box packaging of heat exchanger tube bundle for Kazakhstan project

3.International Standard IPPC Fumigation-Free Wooden Box

The outer packaging utilizes extra-thick, international export-standard fumigation-free wooden cases (IPPC compliant). Engineered with superior impact resistance and low-temperature durability, our packaging easily withstands Kazakhstan’s extreme -40°C winter cold. Shock-absorbing materials lining the interior create an impenetrable “safety firewall” for the heat exchanger tube bundle.

Results & Marketing Value

Following two days of intensive on-site auditing and rigorous testing, the Kazakh engineering team highly commended the heat exchanger tube bundle produced by Datang Finned Tube and immediately confirmed follow-up orders.

• Significant Efficiency Boost: With the customized design of the heat exchanger tube bundle, the project’s system heat transfer efficiency is projected to increase by over 15%.

• Reduced Lifecycle Cost: The premium anti-corrosion and welding processes significantly extend the maintenance cycle of the heat exchanger tube bundle, drastically lowering long-term operational costs for the client.

• Building Brand Trust: This successful cooperation not only proves the global competitiveness of Datang Finned Tube in high-end heat exchanger tube bundle manufacturing but also establishes another benchmark monument for us in the CIS (Commonwealth of Independent States) market.

The manager of the Kazakhstan engineering company stated: “Datang Finned Tube provided not just heat exchanger tube bundles, but a reliable heat exchange guarantee. Their superior product quality and professional customization services completely exceeded our expectations.”
