Project Case Study: Delivering Reliable Air Coolers for Iraq’s Refinery Expansion
Located in a tropical desert climate zone, Iraq frequently experiences extreme ambient temperatures exceeding 50°C in summer, accompanied by year-round severe sandstorms. This harsh natural environment poses rigorous challenges to the heat dissipation of refinery equipment:
-
Extreme Scarcity of Water Resources: In the Middle East desert, traditional cooling media (such as water cooling) cannot be adopted due to water shortages and cost constraints. The refinery processes must rely entirely on air cooling.
-
Severe Environmental Erosion: Standard air cooling equipment running in such high-temperature and sand-heavy environments is highly susceptible to drastic thermal efficiency degradation and severe wear on fan blades.
Consequently, the client demanded the highest international industrial standards for the structural strength of the air cooler units and the durability and driving power of the air cooler fan systems.
Customized Technical Solutions by Datang Finned Tube
Faced with such a demanding operating environment, Datang Finned Tube leveraged its profound technical expertise in finned tube manufacturing, pressure vessel design, and fluid dynamics simulation. The engineering team utilized comprehensive simulations to tailor a complete air cooling system for the Iraqi refinery.
1. Ingenious Design of Air Cooler Tube Bundles and Structures
To maintain the target temperature of the refinery processing media even under extreme ambient temperatures of 50°C+, Datang utilized its self-developed, high-heat-transfer bimetallic finned tubes as the core heat exchange components of the air cooler. The base tubes are made of high-quality carbon steel seamless pipes, and the outer layer is tightly wound or extruded with high-thermal-conductivity aluminum fins, vastly expanding the heat transfer area per unit length. Meanwhile, the overall steel framework features a heavy-duty anti-corrosion and dust-proof design, effectively avoiding local wind resistance and sand accumulation, thereby extending the service life of the entire machine.

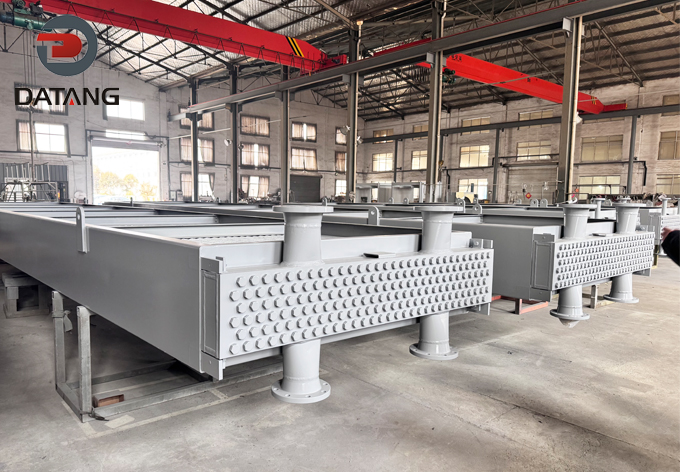

Air Cooler manufactured by Datang Finned Tube for Iraq Oil Refinery

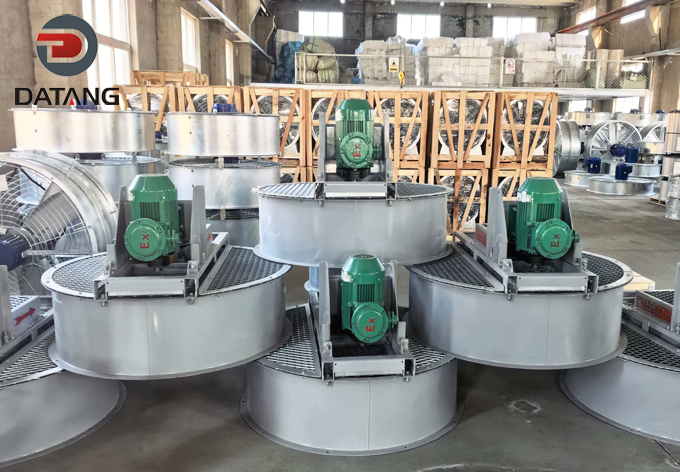

2. Precise Matching of High-Efficiency and Weather-Resistant Air Cooler Fans
The cooling performance of an air-cooled heat exchanger largely depends on the controlled airflow passing through the tube bundles. To this end, Datang configured customized large-diameter, low-noise, and high-pressure air cooler fan assemblies for this project.
-
Advanced Material Selection: The blades of the air cooler fan are made of aviation-grade high-strength aluminum alloy or specialized composite materials, coated with an anti-erosion layer to perfectly withstand the severe desert sandstorms in Iraq.
-
Power & Smart Control: The fans are driven by Variable Frequency Drive (VFD) motors, which automatically adjust the speed of the air cooler fan according to the massive temperature difference between day and night. This ensures optimal cooling output while minimizing energy consumption.

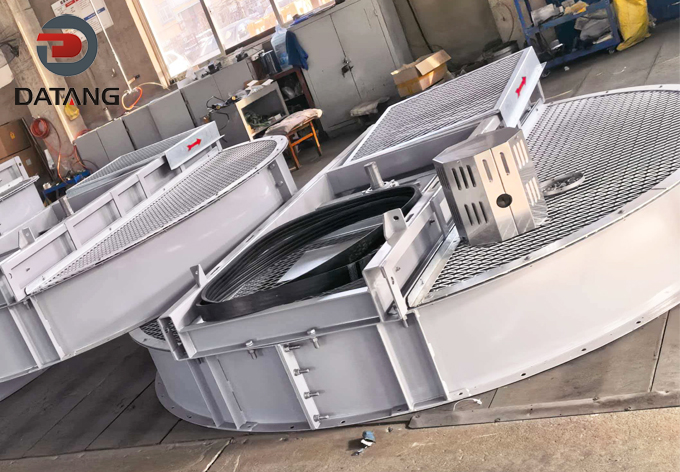

Datang Finned Tube Air cooler fans for petroleum refining iraq
Key Project Technical Parameters
| Core Equipment / Component | Technical Parameters & Specifications | Targeted Design Advantages |
| Customized Industrial Air Cooler |
High-density bimetallic finned tubes, heavy-duty framework, large heat transfer area |
Maintains highly efficient thermal convection in ambient conditions >50°C, preventing medium overheating. |
| Sand-Proof Air Cooler Fan |
Large-diameter high-airflow impeller, explosion-proof VFD motor, wear-resistant coating |
Provides continuous, stable, and powerful cooling airflow, entirely free from sand abrasion issues. |
| Tube Bundle Material & Standard |
High-quality carbon steel and stainless steel complying with ASME / API 661 standards |
Meets long-term safe operation needs for high-pressure and highly corrosive refinery media. |
| Anti-Corrosion Process |
Overall hot-dip galvanizing / heavy-duty epoxy anti-corrosion coating system |
Fully resists corrosion from Middle Eastern desert salt spray and chemical gases. |
Quality Control, Manufacturing, and Client Testimonial
- Technical Expertise: Our deep understanding of petrochemical applications allowed us to recommend the perfect specifications for their air coolers.
- Quality Assurance: We provided comprehensive quality inspection reports for every air cooler fan and tube bundle before shipment, ensuring compliance with international standards.
- Customization Capability: Unlike standard off-the-shelf products, our air coolers were customized to fit the client’s existing plant layout perfectly.

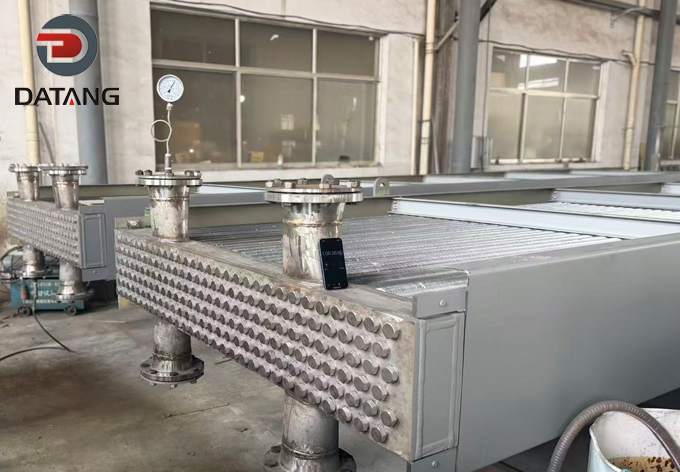

Quality Inspection of Air Cooler Fans and Tube Bundles
Throughout the entire manufacturing process, Cangzhou Datang Steel Pipe Co., Ltd strictly implemented the ISO9001 quality management system and the internationally recognized API 661 standard (Air-Cooled Heat Exchangers for General Refinery Service).
To withstand the rigorous journey of long-distance maritime transit and overland desert transportation, Datang’s logistics team applied heavy-duty steel strapping and moisture-proof wrapping to every single air cooler framework. Meanwhile, the precision air cooler fan blades and VFD motors were independently secured within fully enclosed, fumigation-free wooden cases to guarantee absolute protection against salt spray, humidity, and physical impacts.

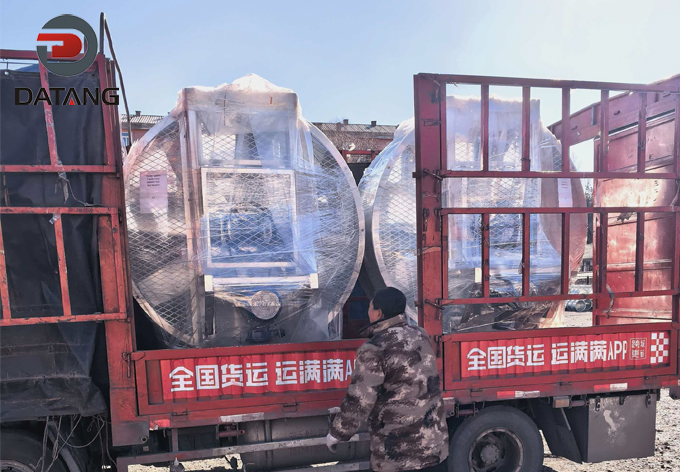

As the massive trucks laden with our air cooler units depart our facility and the containers filled with air cooler fan assemblies are seamlessly packed, we demonstrate not only Datang’s robust supply chain capability but also our solemn commitment to “on-time, top-quality delivery” for our global clientele!

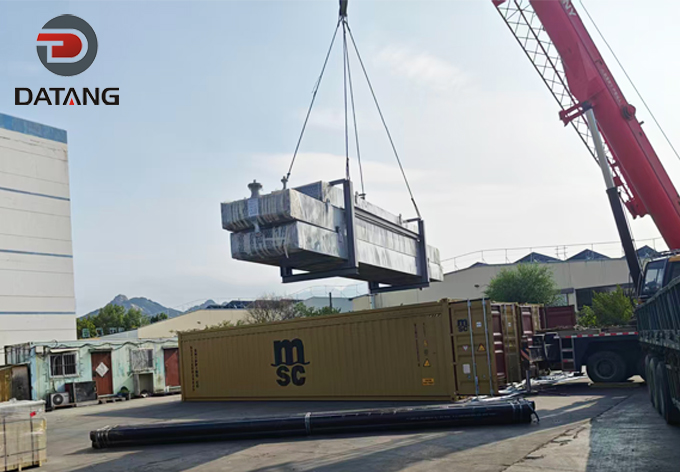

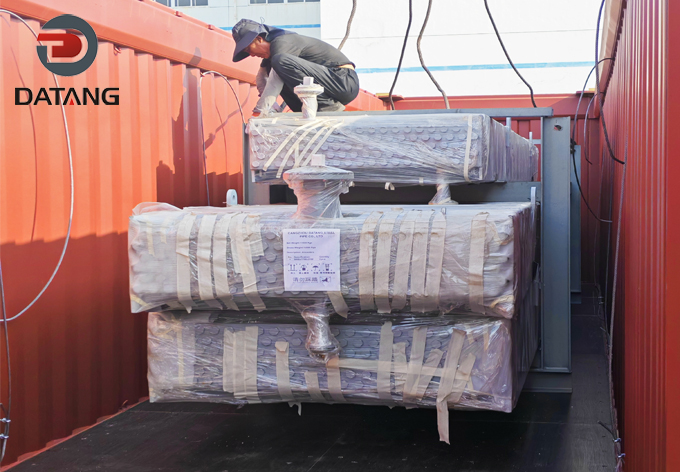

Loading industrial air cooler for shipment to Iraq refinery

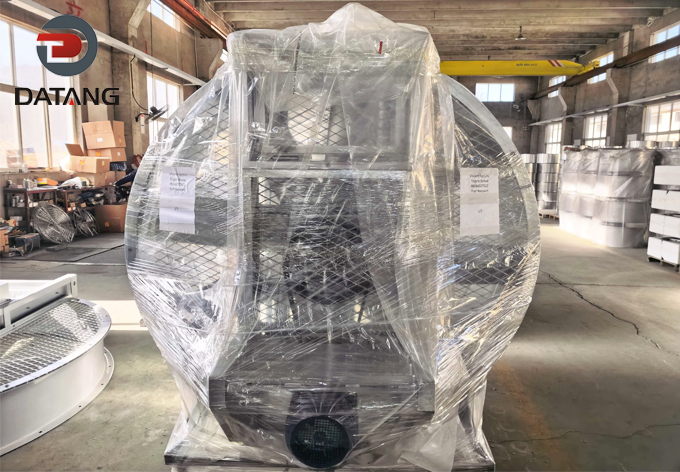

Air cooler fan system packed in containers by Datang Finned Tube
From spectrometer inspection of raw materials to the tightness testing of finned tubes, overall high-pressure hydrostatic testing of the tube bundles, and dynamic balancing tests for every single air cooler fan, a professional QA/QC team supervised every step, issuing comprehensive non-destructive testing (NDT) and quality reports.
Why Do Middle Eastern Clients Universally Trust Datang Finned Tube?
We understand that even a single day of shutdown in a refinery brings catastrophic losses. We deliver more than just individual air cooler units or air cooler fan systems—we deliver a safety commitment of “Zero Failure, High Efficiency, and Long Service Life” under the harshest environments.
All goods safely arrived at the Iraqi project site wrapped in professional seaworthy packaging. During the installation and commissioning phase, despite the time differences and harsh climate, Datang’s technical support team guided the local engineering team via remote video assistance and detailed manuals. They successfully completed the positioning of the air cooler structures and the circuit and angle alignment of the air cooler fan systems.
After three months of operation, the Iraqi client sent highly positive feedback: “The equipment operates exceptionally stably during the peak heat of summer. The outlet temperature completely meets our design expectations. Datang’s air cooling technology is highly trustworthy!”
The successful completion of the Iraq refinery project further consolidates the premium brand positioning of Datang Finned Tube (Cangzhou Datang Steel Pipe Co., Ltd) in the international petrochemical heat exchange equipment market. We have accumulated rich engineering experience in solving heat dissipation challenges in harsh environments across the Middle East and Central Asia.
