Finned Copper Tube Heat Exchanger

Our finned copper tube heat exchangers are engineered to deliver industry-leading thermal performance in demanding environments. By combining the superior conductivity of high-purity copper with advanced surface-extension technology, these units offer a compact and reliable solution for air-to-liquid and gas-to-liquid thermal management.

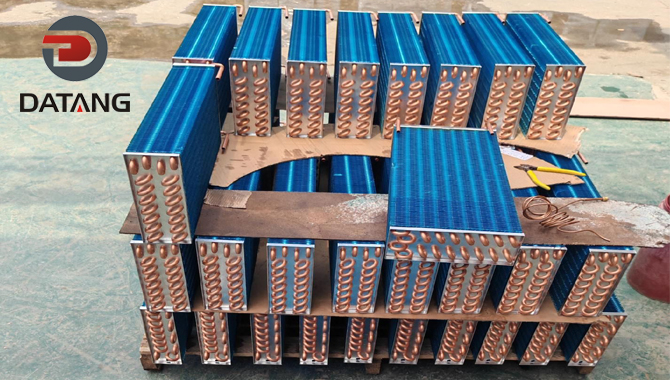

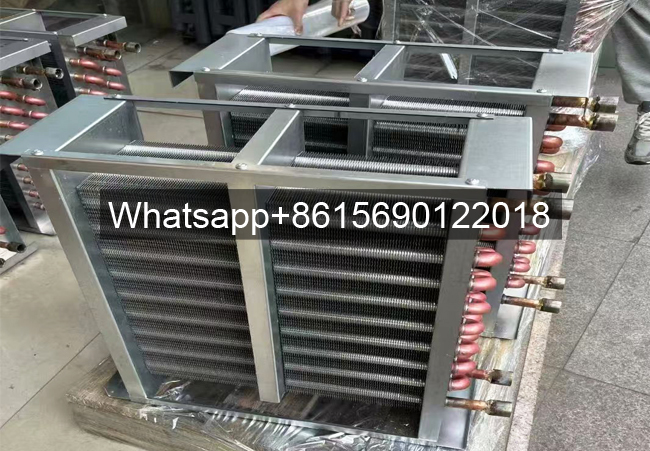

A finned copper tube heat exchanger (copper-aluminum finned heat exchanger) is a copper-based tube with metal fins (usually made of aluminum or copper) added to its outer surface. This significantly increases the heat transfer area, improving heat transfer efficiency, making it particularly suitable for gas-liquid heat exchange.

This is a very common and efficient heat exchange device, widely used in air conditioning, refrigeration, heating, ventilation, air conditioning (HVAC), and industrial cooling systems.

1. Structure of a Finned Copper Tube Heat Exchanger

Copper Tube: Serves as the internal flow channel, typically carrying refrigerant (such as Freon), water, or oil. Copper has excellent thermal conductivity and corrosion resistance, and is easy to bend and process.

Fins: These are usually thin metal sheets (most commonly aluminum fins because aluminum is lightweight and inexpensive; sometimes copper fins are also used), tightly fitted or expanded onto the outside of the copper tube.

Working Principle: The main function of fins is to significantly increase the surface area in contact with air. When air flows over the fin surface, heat can be transferred more quickly between the fluid inside the tube and the air outside.

2. Working Principle of Finned Copper Tube Heat Exchangers

Enhanced Heat Transfer: Because the thermal conductivity of air is much lower than that of liquids or metals, without fins, the efficiency of heat exchange between smooth copper tubes and air is very low. Adding fins can increase the heat exchange area by tens or even hundreds of times, thus significantly improving heat exchange efficiency.

Flow Pattern: Typically, one fluid flows inside the tube (forced convection), while another fluid (usually air) is driven by a fan to sweep laterally across the fin surface (forced convection).

3.Applications & Industries

Our heat exchangers are the preferred choice for sectors requiring high durability and thermal precision:

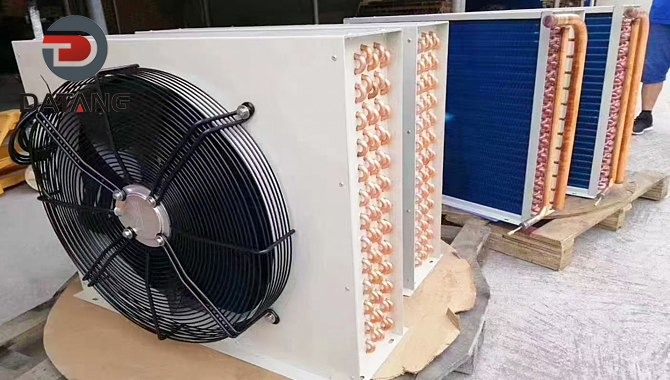

• HVAC/R: High-performance condensers and evaporators.
• Energy: Oil coolers for transformers and turbines.
• Manufacturing: Compressed air after-coolers and hydraulic oil cooling.
• Green Tech: Heat recovery systems for geothermal and solar thermal plants.

4. Key Technical Features

1. Optimized Thermal Performance

The efficiency of our units is driven by advanced finned tube heat transfer principles. By increasing the external surface area of the base tube, we overcome the low heat transfer coefficients typically associated with air or gas flows. This design ensures maximum heat flux while maintaining a compact footprint for the entire system.

2. Versatile Piping Options

To accommodate various industrial scales and pressure requirements, we offer two primary configurations:

• Finned copper tubing: Ideal for high-precision applications such as HVAC systems, refrigeration, and medical equipment. This lightweight, thin-walled tubing offers excellent flexibility and high energy efficiency.

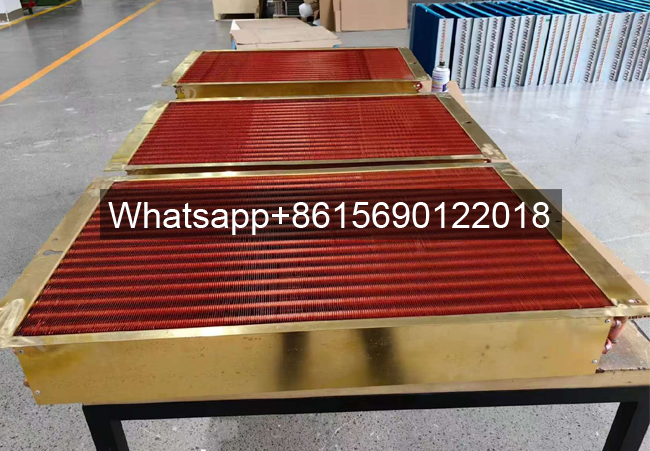

• Finned copper pipe: Built for heavy-duty industrial processes, including power plant cooling and petrochemical processing. These pipes feature thicker walls to withstand higher internal pressures and harsh mechanical stress.

3. Premium Material Integrity

Every copper finned tube we manufacture undergoes rigorous quality control. Using copper ensures not only the best thermal bridge between the fluid and the fins but also provides natural antimicrobial properties and exceptional resistance to corrosion in humid or saline environments.

5.Advantages of Finned Copper Tube Heat Exchangers

• Higher Cost: Copper is more expensive than all-aluminum heat exchangers.
• Dust Accumulation: Dense fins easily accumulate dust, requiring regular cleaning to maintain efficiency.
• Weight: Heavier than all-aluminum equipment.

In short, it utilizes copper tubes to conduct heat and fins to expand the heat dissipation/absorption area, specifically designed for efficient heat exchange between liquids and air.
