L Type Fin Tube Machine
L foot fin tube machine is primarily used to spirally wind aluminum or copper fins around the outer surface of a base tube, creating an L-shaped fin structure.L foot finned tubes are widely used in air-cooled heat exchangers(Fin fan coolers) at power plants, oil refineries, and petrochemical facilities.
- Motor power: 2.2kW, 3phase
- Max. winding speed: Spindle speed 700rpm/min;
- General productivity: About 250m per 8 hours
- Machine dimension (packing): 1350 x 650 x 1250mm
- Machine weight: About 400kg
Datang has been manufacturing finned tubes and fin tube machines for nearly 20 years. Ourexperienced technicians can provide video guidance or visit your site to help you install our extrudedfin tube machines. We welcome your inquiries!
What is an L-Type Finned Tube Machine?

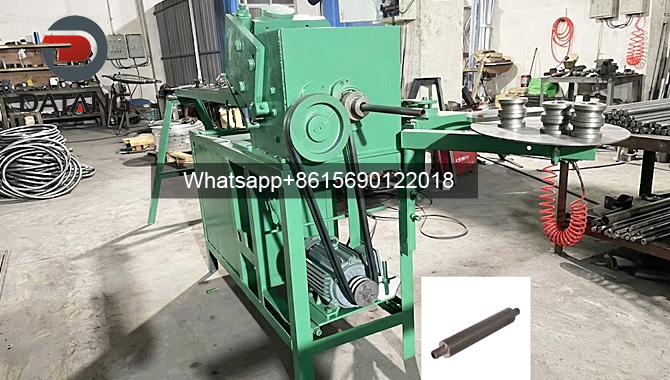

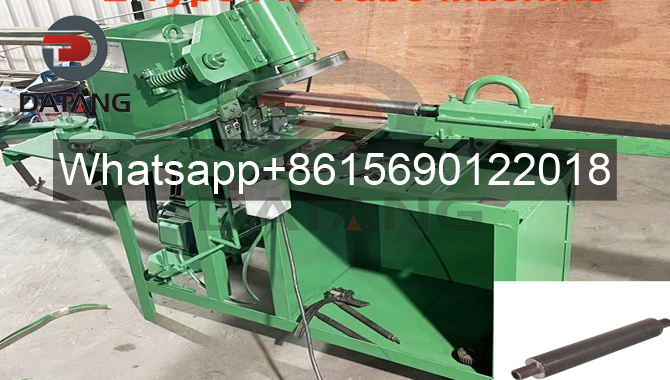

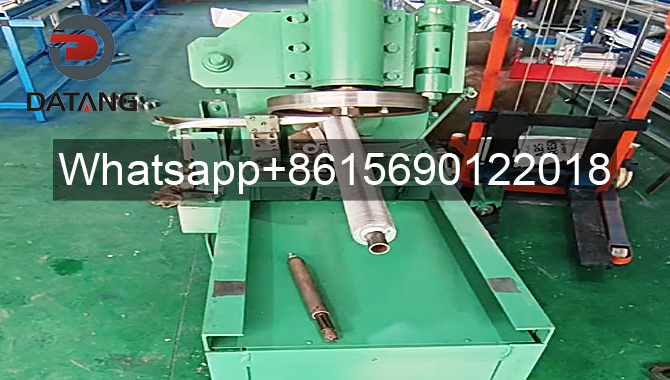

L type finned tube winding machine is specially designed for winding spiral fin to base tube to form L-shaped finned tubes in different diameters.
L-Type Finned Tube Machine Parameters Model:
- Base tube material: carbon steel, stainless steel, alloy steel, copper, aluminum
- Base tube diameter: 12-38mm
- Fins material: copper and aluminum
- Fins height: 6-16mm
- Fins thickness: 0.3-0.5mm
- Fins pitch: 2.3-5mm
- Datasheet
- Drawing
- Certificates
Main technical data of L fin tube winding machine:
| No. | Item | Specification |
|---|---|---|
| 1 | Fin material | Aluminum: height≤16mm, pitch 2.0-10mm; Copper: height≤12mm, pitch≤2.54mm |
| 2 | Base tube material | Stainless steel/carbon steel/copper/aluminum |
| 3 | Base tube diameter | Φ16-38mm* |
| 4 | Fin thickness | 0.4-1.0mm |
| 5 | Motor power | 2.2kW, 3-phase |
| 6 | Max. winding speed | Spindle speed 700rpm/min |
| 7 | General productivity | About 250m per 8 hours |
| 8 | Machine dimension (packing) | 1350×650×1250mm |
| 9 | Machine weight | About 400kg |
Note: When base tube diameter is 13mm or 12mm, the finished fin height is not more than 9mm.
L Type Finned Tube in China Datang
L Type Fin Tube Produced by the Equipment

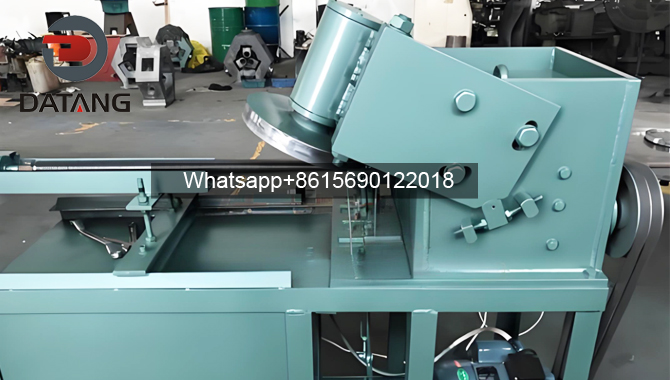

L-type fin tube winding machine is suitable for spiral winding of aluminum and copper strips onto steel tubes, with the characteristics of high efficiency and reliability.
L Type Finned Tube Winding Machine Packaging Details
L type fin tube winding machine will be bare loaded in two 40′ GP containers.
Port
L type finned tube winding machine will be shipped from Tianjin Port,China
Lead time:
Quantity(sets) 1-1 >1
Lead time (days) 60 To be negotiated
