For central air conditioning systems and industrial chillers—specifically large-scale centrifugal and screw chillers—selecting high-efficiency/integral finned copper condenser tubes for retubing and maintenance is a critical measure to boost heat transfer efficiency and reduce energy consumption. These high-efficiency/integral finned copper tubes are primarily used for tube replacement and performance upgrades in shell-and-tube chiller condensers.

Through specialized structural design—primarily utilizing external fin rolling or integral spiral forming processes—the outer wall of the copper tube is directly cold-rolled to produce fins, while spiral internal grooves are machined into the inner wall. This creates enhanced heat-transfer surfaces on both the inner and outer tube walls, achieving dual-sided heat transfer enhancement with zero thermal contact resistance. Its heat transfer performance far exceeds that of standard plain tubes.

In operational chillers, high-efficiency tubes have been successfully deployed to replace plain tubes, significantly boosting condenser heat transfer performance and overall condensing efficiency.

Enhanced/Integral Fin Copper Condenser Tubes Core Advantages

• High-Efficiency Heat Transfer: The unique external fin geometry significantly increases the heat transfer surface area while thinning the condensate liquid film on the fins, boosting the overall heat transfer coefficient by 3 to 7 times compared to standard smooth copper tubes.

• Energy Savings & Cost Reduction: The elevated heat transfer performance reduces the required tube quantity and overall footprint of the heat exchanger, lowering raw copper material consumption as well as operating energy costs.

• Superior Material Quality: Typically manufactured using high-grade TP2 phosphorus-deoxidized copper (C12200), featuring an optimized fin profile, uniform temper, superior internal cleanliness, and strong oxidation resistance.

Enhanced/Integral Fin Copper Condenser Tubes — Product Features

Integral Rolled Fin Structure

• Seamless one-piece construction combining the copper base tube and fins, eliminating welded interfaces.

• Short thermal conduction path with zero contact resistance.

• High mechanical strength, engineered for reliable long-term operation.

Enhanced Refrigerant-Side Condensation Heat Transfer

• External fins significantly expand the effective heat transfer surface area.

• Optimized condensate film flow promotes rapid liquid drainage.

• Increases the condensation heat transfer coefficient while reducing condensing temperature.

Ideal for Chiller Maintenance and Retrofits

• Direct drop-in replacement for original plain or standard copper tubes.

• Preserves original tube sheet dimensions and roller-expansion installation methods.

• Perfectly suited for extending service life and achieving energy-efficiency upgrades in aging chillers. Shell-and-tube chiller condensers typically feature removable water boxes and mechanically expanded, replaceable tube bundles to streamline routine inspection and retubing.

Key Selection Considerations

When retubing chiller units, the following four dimensions should be comprehensively evaluated to ensure optimal matching with the system and achieve peak performance:

1. Materials & Applicable Standards

• Copper Alloy Grades: Select based on cooling water quality. For standard water quality, TP2 phosphorus-deoxidized copper tubes (UNS C12200) are recommended. If the water quality is poor or involves seawater, copper-nickel alloys with superior corrosion resistance (such as UNS C70600 90-10 Cu-Ni) or titanium alloy tubes should be considered.

• Compliance Standards: Ensure the tubing complies with relevant national or international standard specifications. Domestic projects typically reference GB/T 19447-2013 (Seamless Finned Copper and Copper Alloy Tubes for Heat Exchangers), while ASTM B359 is the standard international specification for seamless copper and copper-alloy condenser and heat exchanger tubes with integral fins.

2. Enhanced Heat Transfer Technologies Heat transfer enhancement is primarily achieved by expanding the heat transfer surface area and disrupting the fluid boundary layer. Designed for the distinct operating conditions of external refrigerant condensation and internal cooling water flow, two primary technologies are used:

• External Enhancement (Refrigerant Condensing Side): Utilizes 2D integral finned tubes (low-finned tubes). Featuring trapezoidal or rectangular fin cross-sections, these tubes significantly increase the condensation surface area. The core mechanism leverages surface tension to pull the condensate down to the fin roots, thereby thinning the liquid film on the fin flanks and reducing thermal resistance.

• Internal Enhancement (Water Side): Utilizes 3D internally finned tubes (internally rifled/grooved tubes). The inner wall features three-dimensionally distributed helical teeth that effectively induce flow turbulence, thin the thermal boundary layer, and increase the internal heat transfer coefficient to 1.5–3.5 times that of smooth tubes—making them particularly suitable when water-side thermal resistance dominates.

3. Key Geometric Parameters Fin dimensions directly determine both heat transfer enhancement and fluid resistance profiles; precise matching based on original design specs or new operating conditions is required:

• Fin Height & Pitch/Spacing: Influence effective surface area and condensate drainage capacity.

• Fin Root Thickness: Dictates overall pressure-bearing capacity and structural integrity of the tube.

• Internal Fin Parameters: Include internal rib height, rib count, and helix angle, which determine internal fluid turbulence intensity and pressure drop.

4. Supply Temper & Manufacturing Process

• Delivery Temper: Enhanced tubes are typically supplied in either an annealed temper (O61) or as-manufactured (light cold-worked) temper. Annealed tubes offer superior ductility for easy on-site tube-sheet expansion; as-manufactured tubes offer higher yield strength.

• Manufacturing Process: Ensure tubes are produced via a cold-forming integral rolling process to guarantee a monolithic bond between fins and base tube, eliminating any risk of weld separation or stress cracking.

Common Types

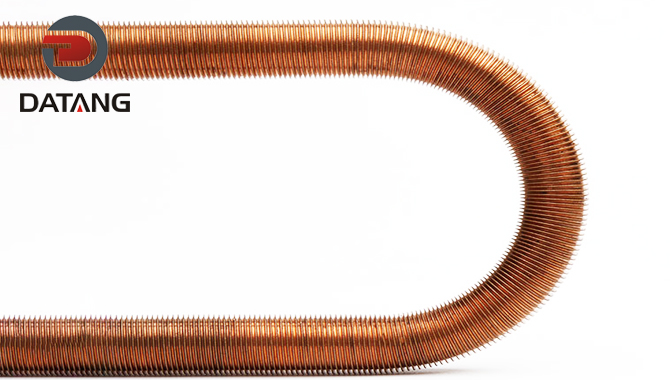

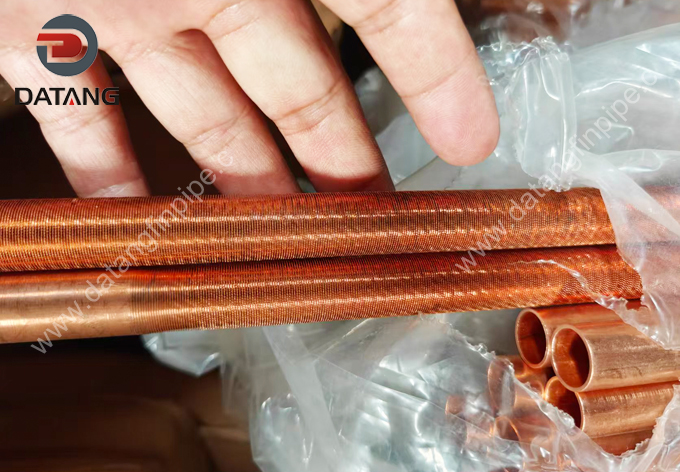

• External Integral Finned Tube

  • Designed for shell-side refrigerant condensation;

  • Chilled/cooling water flows inside the tubes;

  • The most widely used tube type for chiller condenser retubing.

• Internally & Externally Enhanced Copper Tube (Dual-Enhanced Tube)

  • Internal surface features helical grooving/rifling to enhance water-side heat transfer;

  • External surface features integral fins to enhance refrigerant-side heat transfer;

  • Ideal for high-efficiency chiller retrofits and performance upgrades.

• Low-Fin Copper Tube

  • Proven, mature, and highly reliable;

  • Excellent compatibility with conventional shell-and-tube condenser designs;

  • Broadly applied across the HVAC&R maintenance and aftermarket service sectors.
