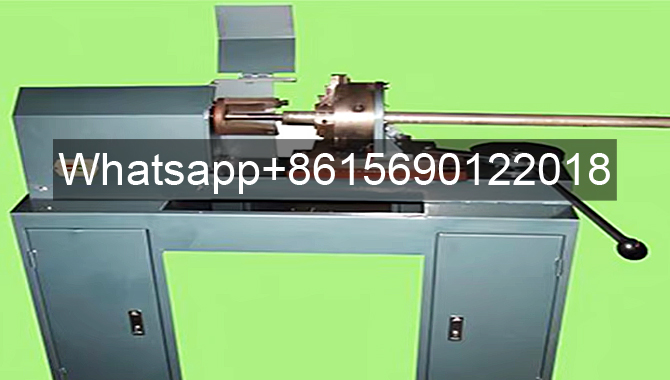

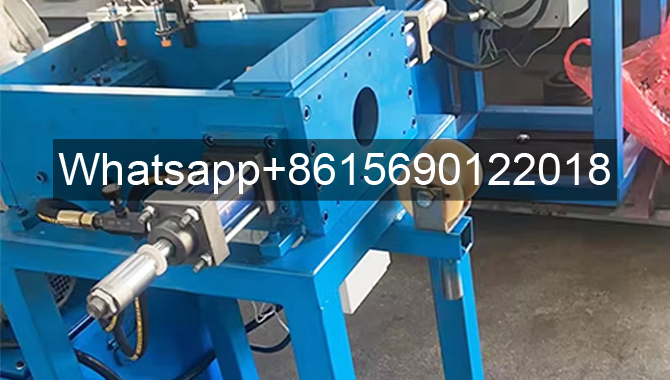

Fin Tube Header Removal Machine

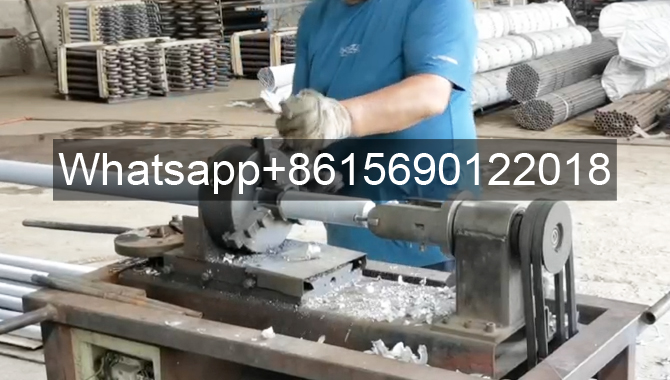

Fin Tube Header Removal Machine Uses:
(1) Used for 15°-45° bevel angle of finned tube aluminum tube to facilitate the introduction of rolling blades when rolling
finned tube;
(2) Used for fin tube double-end redundant fins Cutting and removing to meet the processing requirements of the part drawing.
- Spindle speed: 560mm/min
- Length of finned tube head: 0-110mm
- Motor power: 1.1KW
- Machine appearance (length×width×height): 1100×500×1100m
- Weight:110kg
Fin tube header removal machine also called extruded fin tube end trimming machine,extruded fin tube end cutting machine,finned tube end deburring machine.
Fin Tube Header Removal Machine Uses:
(1) Used for 15°-45° bevel angle of finned tube aluminum tube to facilitate the introduction of rolling blades when rolling
finned tube;
(2) Used for fin tube double-end redundant fins Cutting and removing to meet the processing requirements of the part drawing.
Principle of the machine:
After the fin tube is fixed and clamped, the cutting is produced by the rotating tool through the movement of the manual eccentric wheel, so as to realize the requirement of the specified length of the fin tube.
Machine composition:
The finned tube shifting machine is mainly composed of a motor, a main shaft, a three-jaw, a dovetail slide, an eccentric plate,a bracket, and electrical appliances.
Operation
1. Choose a reasonable mandrel according to the size of the inner hole of the fin tube. The outer diameter of the mandrel is 0.15-0.2mm smaller than the inner hole of the fin tube.
2. Choose a reasonable three-jaw jacket according to the outer diameter of the fin tube. The jacket material is nylon. The inner hole size of the jacket is 1-2mm larger than the outer diameter of the fin tube.
3. Operation: Three-jaw clamp set clamps the finned tube, turns on the motor, slowly rotates the eccentric wheel, and moves the finned tube to cut to the specified length.
4. Add kerosene to prevent sticking to the blade.
- Datasheet
- Drawing
- Certificates
Fin Tube Header Removal Machine Technical Parameters
| Parameter | Value |
|---|---|
| Spindle speed | 560 mm/min |
| Distance between center of fin tube and ground | 985 mm |
| Length of finned tube head | 0-110 mm |
| Motor power | 1.1 kW |
| Machine appearance (L×W×H) | 1100×500×1100 mm |
| Weight | 110 kg |
Notes:
- Spindle speed: Unit “mm/min” is retained as it’s a common unit for machining speeds.
- Machine appearance: “L×W×H” stands for “Length × Width × Height” (standard format).
- Units: All dimensions are in millimeters (mm) except for motor power (kW) and weight (kg).
- Finned tube head length: “0-110 mm” indicates a range (adjustable).
Fin Tube Header Removal Machine
Fin tube head removal machine is a special equipment for processing extruded fin tubes, mainly used to remove or adjust the fin structure at the end of the fin tube.
Fin Tube Header Removal Machine Packaging
Fin Tube Header Removal Machine will be bare loaded in two 40′ GP containers.
Port
Extruded fin tube end trimming machine rroduction line will be shipped from Tianjin Port,China
Lead time:
Quantity(sets) 1-1 >1
Lead time (days) 60 To be negotiated
