Longitudinal finned tubes for heat exchangers are components that enhance heat exchange efficiency by welding longitudinal fins on the base tube. They are mainly used to improve heat exchange performance in high temperature, high pressure and corrosive environments.
- Tube Material:Carbon steel,Stainless steel,Copper,Titanium;Fin Material: Aluminum,Copper,Steel;
- Tube OD:19-273mm,Tube Thk:2.0-15.0mm ,Fin Thk:0.5-3.0mm ,Fin Pitch:3.0-30.0mm ,Fin Height:8.0-35.0mm
Product Details

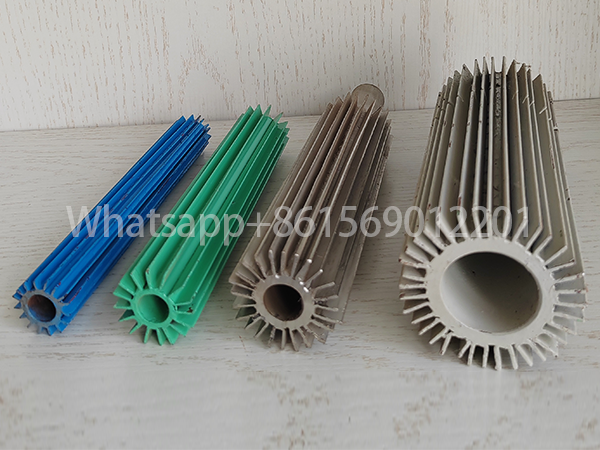

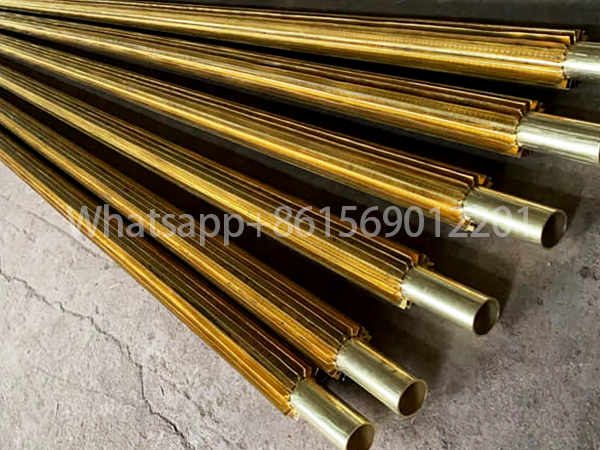

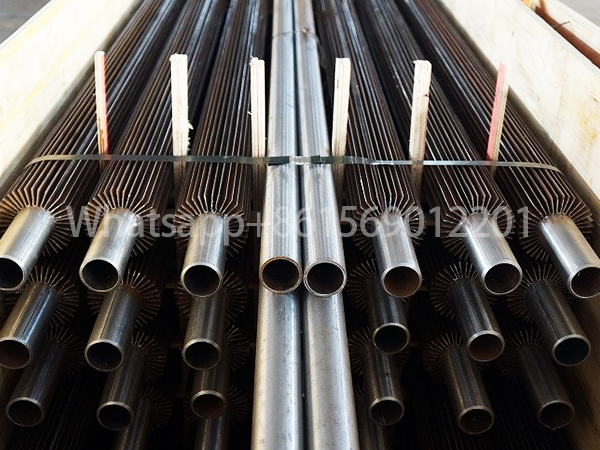

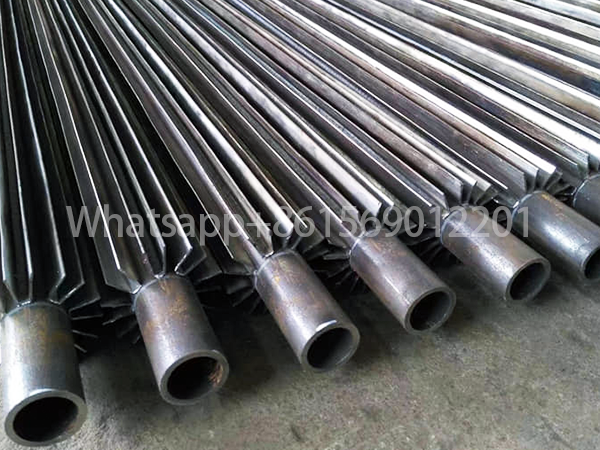

What are longitudinal finned tubes?
Longitudinal finned tubes for heat exchangers are components that enhance heat exchange efficiency by welding longitudinal fins on the base tube. They are mainly used to improve heat exchange performance in high temperature, high pressure and corrosive environments.
Structural characteristics of longitudinal finned tubes
The fin direction of the longitudinal finned tube is consistent with the direction of the heat exchange tube, and more efficient heat transfer is achieved by increasing the surface area. This structure is mostly used in shell and tube heat exchangers, especially in petrochemicals, industrial boilers and other scenarios.
Manufacturing process of longitudinal finned tubes
Common manufacturing methods include high-frequency welding and mechanical winding. The high-frequency welding process can make the fins and the base tube more tightly combined, with higher heat transfer efficiency and strong adaptability.
Application scenarios of longitudinal finned tubes
Applicable to steam environments, waste heat recovery devices and air conditioning heat exchangers, etc., and can adapt to complex working conditions while ensuring efficient heat dissipation.
Longitudinal finned tubes are key components used in heat exchangers to enhance heat transfer. They increase heat transfer efficiency by increasing surface area and are widely used in high temperature, high pressure and corrosive environments in the industrial field. Its core advantages include corrosion resistance and wear resistance, and are suitable for waste heat recovery and heat exchange equipment.
It is mainly used in heat exchangers in industrial fields such as petrochemicals, electricity, and metallurgy, such as heat pipe heat exchangers and waste heat recovery equipment. In the waste heat recovery scenario of ash-rich flue gas, longitudinal finned tubes can significantly improve heat transfer performance and reduce flow resistance.
Advantages of longitudinal finned tubes
Compared with circular finned heat exchangers, longitudinal finned tubes have lower metal consumption and smaller flow resistance under the same heat recovery conditions. Experimental data show that its heat transfer performance is slightly better than that of circular finned heat exchangers, especially when dealing with ash-rich flue gas, it is more stable.
- Datasheet
- Drawing
- Certificates
|
Base Tube O.D (mm)
|
Base Tube Thickness (mm)
|
Fin Height (mm)
|
Fin Thickness (mm)
|
Fin NO.（Pc）
|
|
19 mm ~76 mm
|
2.0 mm ~6.0 mm
|
6.0 mm ~32.0 mm
|
0.8 mm ~1.2mm
|
4,8,16,24,32,40,48
|
|
Base Tube Material
|
Fin Material
|
Tube Length (Mtr)
|
||
|
Carbon Steel ,Alloy Steel ,Stainless Steel
|
Carbon Steel ,Alloy Steel ,Stainless Steel
|
≤ 15Mtrs
|
||
Longitudinal Finned Tubes for Heat Exchangers | Brown Fin Tube Appearance Dimension Inspection
Longitudinal Finned Tubes for Heat Exchangers | Brown Fin Tube appearance dimension inspection is one of the important links to ensure the quality and performance of fin tubes.
The inspection items mainly include fin height, fin spacing, fin thickness, base tube wall thickness and outer diameter, etc.
Datang Longitudinal Finned Tubes for Heat Exchangers | Brown Fin Tube Bending Processing
Bending of fin tubes is an important step in the production process of longitudinal finned tubes for heat exchangers | brown fin tubes. Bending is to bend the embedded fin tube material through specific mechanical equipment to form a suitable curvature to meet different usage requirements.
This step requires strict control of the bending angle and curvature to ensure the fit between the fin and the base tube and the heat dissipation effect.
Longitudinal Finned Tubes for Heat Exchangers | Brown Fin Tube Pull Off Test
Longitudinal finned tubes tube pull-off test is a test used to detect whether the fin tube will fall off when subjected to tension, mainly used to ensure the quality and reliability of the fin tube.
Datang’s this test is very important in the production process because the g type finned tubes will be subjected to various stresses during operation, such as temperature changes and pipe expansion, which may cause the fin to fall off, thereby affecting the performance and safety of the heat exchanger .
