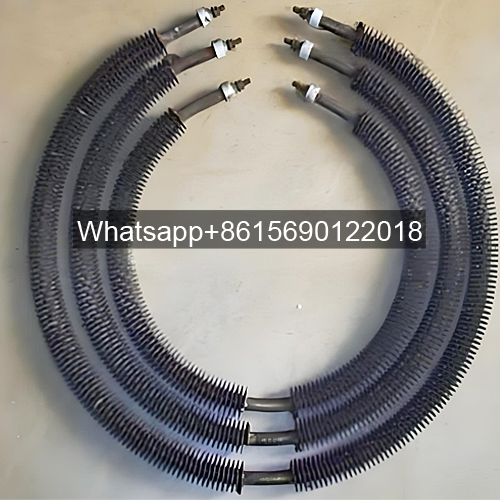

What is Finned Tubular Heaters?
Finned Tubular Heaters are manufactured with the same rugged construction as our standard Tubular Heaters and then a helically wound fin is attached to the outer sheath. The fins are fully brazed to the heater sheath for optimum heat dissipation and efficiency. These heaters are ideal for heating air and select gases in forced and natural convection applications.
Finned Tubular Heaters Features
- Steel sheath models are suitable for operating temperatures to 800 °F (427 C)
- Stainless steel sheath models are suitable for operating temperatures to 1200 °F (649 C)
- Premium grade magnesium oxide insulation imbeds the resistance wire coil for optimum heat transfer
- High temperature nickel chromium resistance wire
- Full brazed wound fin: 1 1/8″ diameter x 4.5 fins/inch
- Standard sheath diameter of .440″
- Screw and nut terminals on catalog models
- Many catalog wattage, voltage, and lengths
- Standard and custom options available
- Several models offered with mounting fittings
Finned Tubular Heaters Applications
Forced and Natural Convection Heating

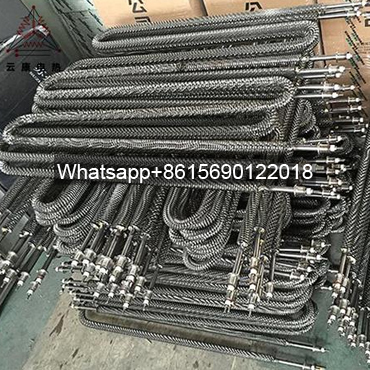

Industrial Ovens and Cabinets
Duct Heater Assemblies

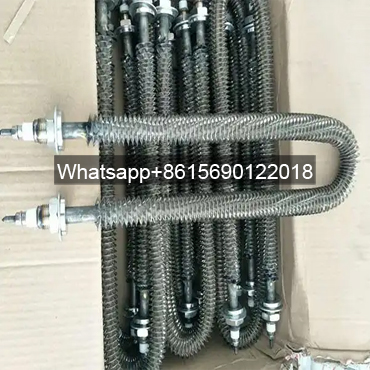

Air Dryers
Resistive Load Banks
Finned Tubular Heater Specifications
|
Construction Diameter
|
Diameter 8.2mm Stainless steel 304,316L,321&Incoloy sheath
|
|
Tube Material
|
Stainless steel 304,316L,321&Incoloy available for your requirements.
|
|
Diameter Tolerance
|
Tolerance ±10%
|
|
Use of Alloys
|
Suitable for heater tube AISI 304 in water or humid environment max. temperature up
to 170°C. In air max. 220°C |
|
Termination
|
M3.5 or M4 stainless steel screw & nuts
|
|
Watt Density
|
Tube watt density of 30 watts sq.in.- suitable for many uses
|
|
Custom
|
Custom configurations, lengths, watts, volts available
|

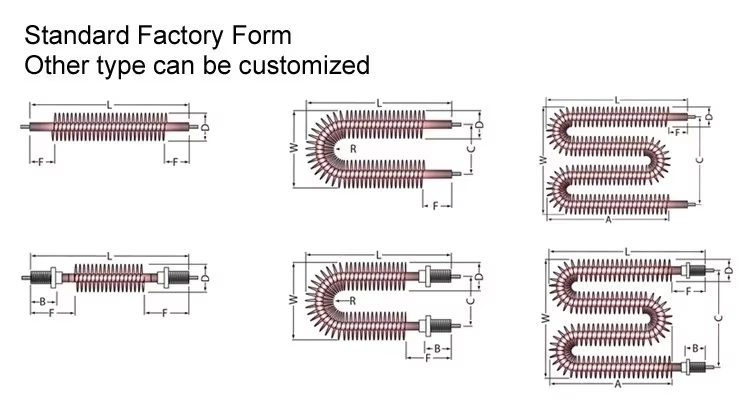

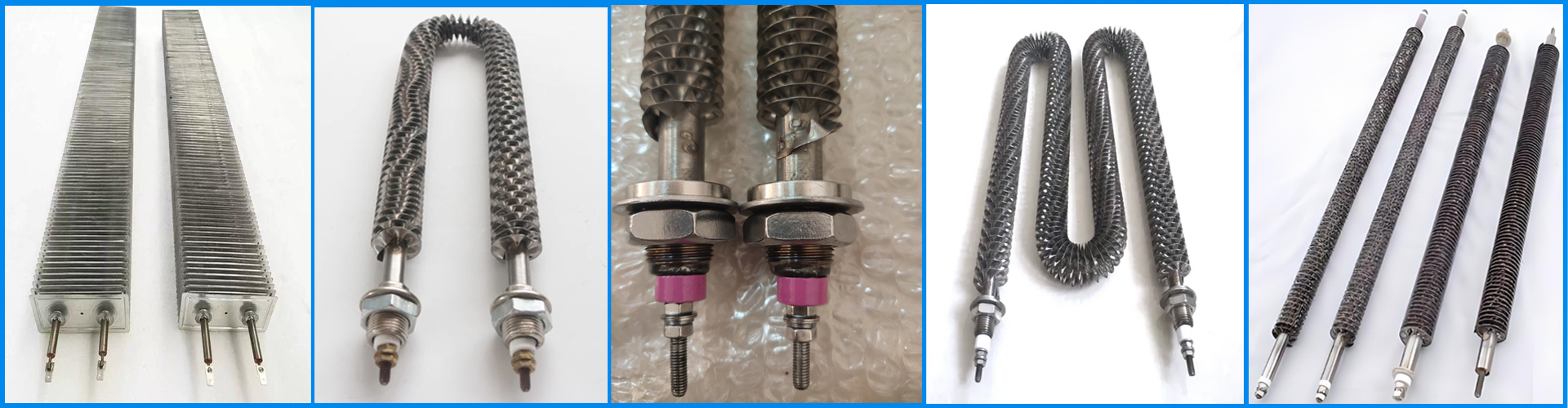

Finned Tubular Heaters Shape
Made of stainless steel, from medium and low temperatures (≤350℃) to high temperatures (>700℃).
TP304 / 304L SMLS Stainless Steel Crimped Finned Tube,TP316 / 316L SMLS Stainless Steel Finned Tubular Heaters
The design utilizes stainless steel metal tubes with heating wires placed inside, in a W shape, which facilitates compact installation and optimizes heat distribution.
Low-profile heat-dissipating design,Highly efficient,Some versions suitable for use to 1200 °F (649 C)
Finned Tubular Heaters By Industy
Electric finned tube heaters are widely used in workshops such as textile and machinery processing plants as air heaters, for auxiliary heating in gas turbine waste heat boilers or preheating in nuclear power plant seawater cooling systems, for anti-freezing heating of crude oil pipelines, temperature control of chemical reactors, and preheating of exhaust gas treatment devices. They can also be used for pasteurization of dairy products, cooling of freeze-drying equipment for pharmaceuticals, and rapid heating of large venues (such as stadiums and workshops).
Top Features of Finned Tubular Heaters
Datang offers the widest variety of sizes available for finned tubular heaters in the industry.Its heat exchange efficiency can reach several times or even dozens of times that of ordinary heat exchangers.
Finned tubular heaters offer advantages such as rapid heating, uniform heat distribution, excellent heat dissipation, high thermal efficiency, long service life, compact size, and low cost.
They are designed for easy installation according to customer requirements.
Customizable Finned Tubular Heaters
We can customize the material, specification and length according to your requirements.Solve your problems anytime and anywhere. Customize fin tubes and equipment according to your needs. Provide free technical guidance. Welcome to customize with drawings, so that you can purchase without worries.
Advantages of Choosing Stainless Steel for Finned Tubular Heaters
304 stainless steel is suitable for general heating applications, 316 stainless steel offers resistance to weak acids and bases, and 303 stainless steel is used for high-finish components. Use requires a non-corrosive medium, regular removal of scale buildup, and implementation of anti-freezing measures.
The manufacturing process must meet standards including power deviation testing, leak testing, and a 3000-hour lifespan test to ensure temperature resistance, corrosion resistance, and safety and stability.
Finned Tubular Heaters Electric Heat Tube Elements Package
Payment Terms:T/T, LC
Delivery: 15-30 days after payment
Marking: Standard + Steel Grade + Size + Heat No + Lot No
Package: Iron frame packing boxes and the desiccants are put into each package for continental transportation as well. or as required
Spiral Crimped Fin Tube Quality Checks
Each of our finned tubular heaters is subjected to stringent quality checks.Inspection and Tests Performed:
1.Chemical Composition inspection。
2.Mechanical Properties Test(Tensile Strength, Yield Strength, Elongation, Flaring, Flattening, Hardness, Impact Test).
3.Surface and Dimension Test.
4.No-destructive Test.
5.Hydrostatic Test.
Finned Tubular Heaters Application
The spiral fin tube radiator for vegetable and flower greenhouse is an efficient and durable heating equipment, especially suitable for greenhouse cultivation in cold seasons.
During the breeding and brooding process, the high-frequency welded fin tube radiator improves the heat exchange efficiency by increasing the heat dissipation area, and can raise the temperature in the brooding house to the required level in a short time. This design enables the farm to quickly reach and maintain a suitable temperature range (15-20 degrees Celsius) when heating in winter.
Hot-dip galvanized spiral wound fin tube for greenhouse heating, as a key component of the heating system, can efficiently and evenly transfer heat to keep the temperature in the greenhouse within a suitable range

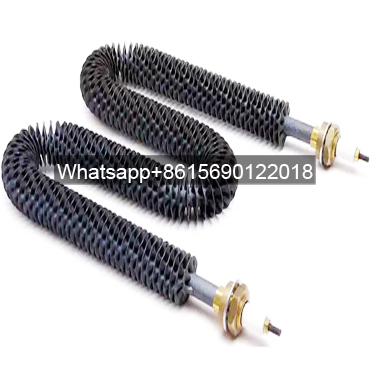

The W-shaped stainless steel finned electric heating tube is an industrial heating element that combines a W-shaped bending structure, a stainless steel casing, and a finned design for efficient electrical energy conversion. Its core structure includes a stainless steel sheath, an internal heating alloy wire (such as nickel-chromium or iron-chromium alloy), and crystalline magnesium oxide powder filled in the gaps to ensure good thermal conductivity and insulation; the fins are usually wrapped around the tube surface to increase the heat exchange area, while the W-shaped (or M-shaped) structure optimizes space utilization and heat distribution uniformity through its bending design.
Related Product
Finned Tubular Heaters FAQs
A: Crimped fin tube production line 8.
A: We can provide finned tubular heaters samples for free.
A: After you confirm finned tubular heaters sample details, the samples will be ready for delivery in 3-7days,and will be sent to you via express and arrive in 3-5days.
A: Finned tubular heaters can be customized, we can make the new thermoforming or extruding mode based on your drawings and we can sign a confidentiality agreement about your patented product, pls contact us for any further information.
A: Always a pre-production sample,before mass production;always final inspection before shipment.
Inspection & Guarantee Certificate is supplied with shipment, and the Third Party Inspection is available.
