Fin Tube Fin Shapes
Fin Tube Stamping
Fin tube stamping is to stamp the fin material into a specific shape and size through a stamping device.
Common fin forms include square fins, round fins, spiral fins, elliptical fins, longitudinal fins, corrugated fins, spiral serrated fins, needle fins, etc. The fin spacing and height are customized according to design requirements, and the size and surface quality are checked.

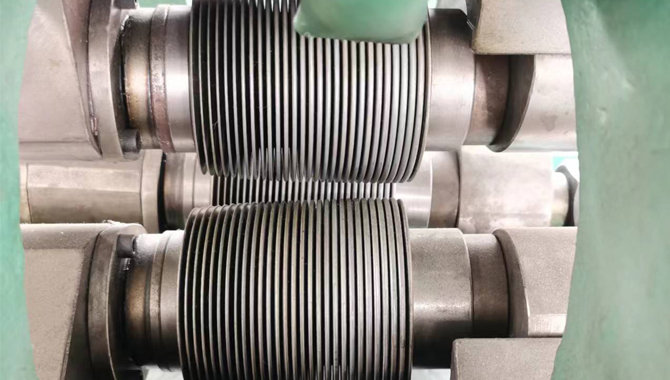

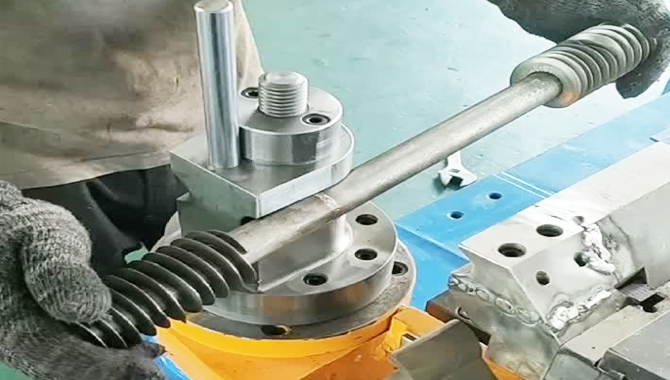

Fin Tube Bending
Fin tube bending is to bend the fin according to the required shape to increase the heat transfer area.
The curvature of the finned tube can be customized according to different usage environments, space sizes and heat exchange methods.

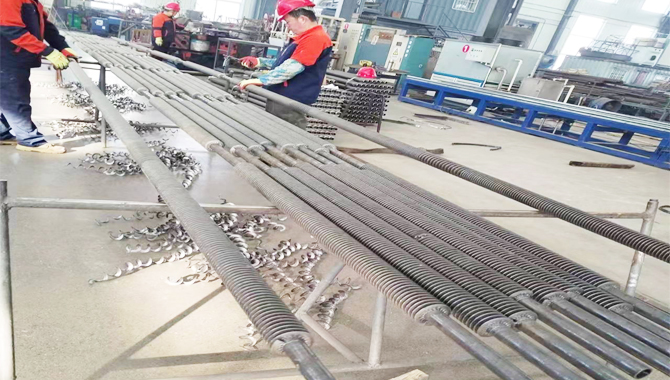

Fin Tube Cutting
Fin tube cutting is to cut the fin into an appropriate length.
Fin tube cutting methods include laser cutting, mechanical cutting and water jet cutting.

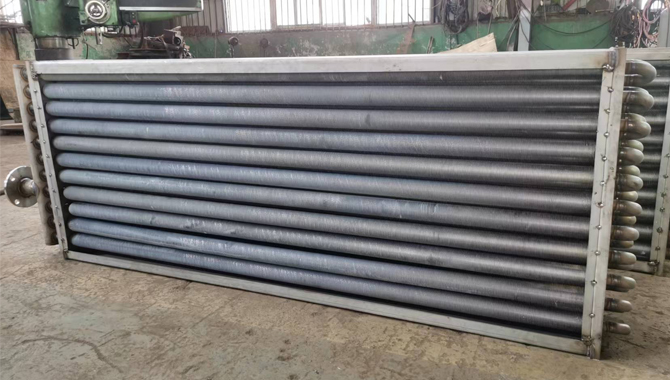

Application of Fin Tubes of Different Shapes

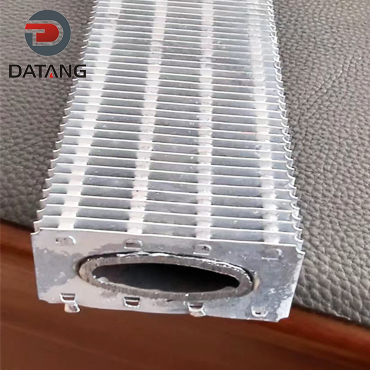

Square fin tube:Suitable for occasions that require high heat transfer efficiency and low cost.
Round fin tube:Suitable for occasions that require compact structure and good corrosion resistance.

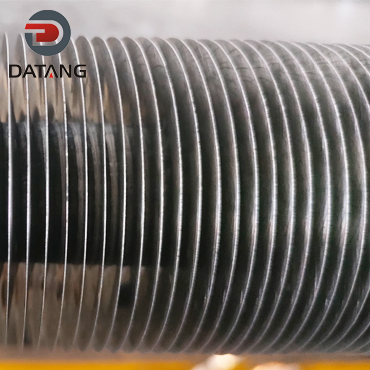

Spiral fin tube:Suitable for occasions that require high turbulence and self-cleaning performance.

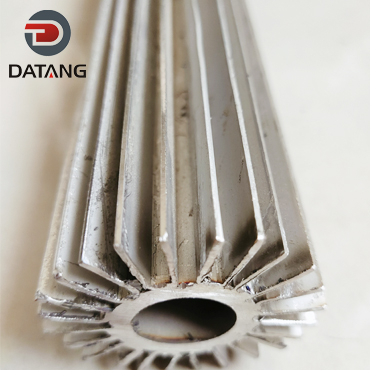

Longitudinal fin tube:Suitable for occasions that require high turbulence and precise heat transfer control.

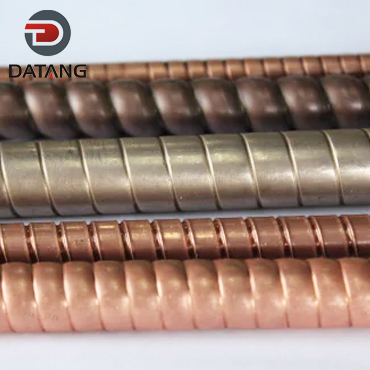

Corrugated fin tube:Suitable for occasions that require high heat transfer efficiency and durability.
Spiral serrated fin tube:Suitable for occasions that require high heat transfer efficiency and high corrosion resistance.

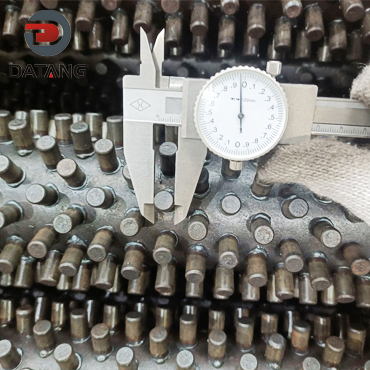

Stud fin tube:Suitable for occasions that require high heat transfer performance.
Integral fin tube: Suitable for occasions that require high strength and high heat transfer performance.
