Crimped Finned Tube Machine-W Wrinkle Fin Tube, Corrugated Fin Tube Winding Machine
- Width of sheet spindle: 3-15mm
- Thickness of sheet spindle: 0.1-0.8mm
- Max tube length 2500mm / customization Max 6000mm
- Diameter of spindle: Φ12-Φ38mm
- Smallest length of spindle: 150mm
- Largest length of spindle: according to customer request
- Input power: 380V 50HZ
- Motor power: 3.0 KW
Crimped Finned Tube Machine
Tube cooling fin tape winding machine is specially designed for the installation of spinning heating tube. The machine features simple structure and convenient operation.
The machine can be utilized in a certain speed range (265-125r.p.m). The non speed adjustable mechanic stepless transmission is transmitted to the spindle box by the chain. The three-claw chuck in front of the spindle enables the machine to achieve positive inversion, so as to meet the needs of inverting the sheet to the left and the right.
Specifications
Item: FH-38
MAIN TECHNICAL PARAMETER:
Width of sheet spindle: 3-15mm
Thickness of sheet spindle: 0.1-0.8mm
Max tube length 2500mm / customization Max 6000mm
Materials of spindle:
annealed stainless steel plate, zinc-coated low carbon p
late, aluminum plate, bronze plate, etc. Speed of spindle: 25-125 r.p.m, with no speed adjustable
Diameter of spindle: Φ12-Φ38mm
Smallest length of spindle: 150mm
Largest length of spindle: according to customer request
Input power: 380V 50HZ
Motor power: 3.0 KW
Guarantee: one year since the date of B/L
After-sale service: We provide free training service in our factory.
RFQ
1.Inquiry W Wrinkle Finned Tube Machine —— February 24, 2026
We need to purchase this machine
We need applied fin. Crinkled style
For stainless steel tube with stainless steel fins (304SS)
we will be brazing the fins
- Datasheet
- Drawing
- Certificates
| Parameter | Specification |
|---|---|
| Item Model | FH-38 |
| Sheet Spindle Width | 3 – 15 mm |
| Sheet Spindle Thickness | 0.1 – 0.8 mm |
| Max Tube Length | 2,500 mm (Standard) Up to 6,000 mm (Customizable) |
| Spindle Materials | Annealed stainless steel plate, Zinc-coated low carbon steel plate, Aluminum plate, Bronze plate, etc. |
| Spindle Speed | 25 – 125 r.p.m (Non-adjustable / Fixed speed range) |
| Spindle Diameter | Φ12 – Φ38 mm |
| Min. Spindle Length | 150 mm |
| Max. Spindle Length | According to customer request |
| Input Power | 380V, 50Hz |
| Motor Power | 3.0 KW |

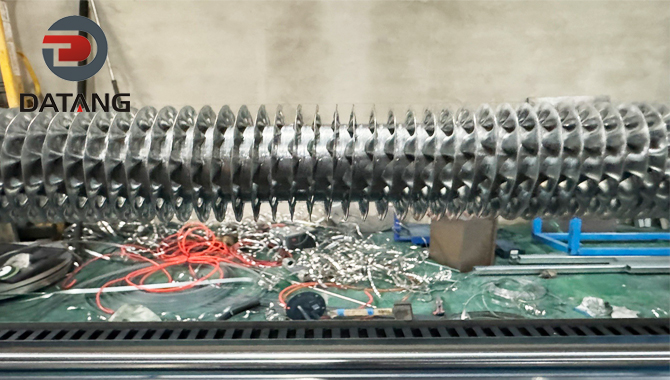

Finned tubes produced by Machine Crimped Fin Production
A cold-winding finned tube machine is a specialized piece of equipment used to manufacture cold-winding finned tubes. These machines are often referred to as steel strip winding machines or cold-winding fin forming machines. Their working principle involves winding metal strips (such as stainless steel or aluminum strips) around a base tube at high speed, forming tightly contacting spiral fins through mechanical pressure. They are widely used in heat exchangers, radiators, air conditioning condensers, and other heat exchange equipment.
W Wrinkle Finned Tube-Stainless Steel Tube with Stainless Steel Fins
Stainless steel cold-wound finned tubes are high-efficiency heat exchange elements manufactured using the FH-38 cold-wound finned tube machine you just provided. Annealed stainless steel strips are spirally wound onto a base tube (usually stainless steel, but carbon steel or copper tubes can also be used).Due to the use of stainless steel and the cold-wound process, these finned tubes possess extremely high corrosion resistance, high-temperature resistance, and structural strength, making them the preferred choice for heat exchange equipment in harsh operating conditions.
Stainless Steel Finned Tubular Heating
A stainless steel electric heating finned tube is a composite heating element in which an electric heating element (such as a resistance wire or heating rod) is built into a stainless steel base tube, and stainless steel fins are tightly wound around the outside of the base tube using a cold winding process (such as the FH-38 machine you mentioned earlier).
Crimped Finned Tube-Copper Tube with Copper Fins
Copper crimped finned tubes are high-efficiency heat exchange elements made by tightly winding highly thermally conductive copper strips (or copper alloy strips) onto copper tubes using a cold-winding process.
1. All Copper Structure: Base tube: TP2 copper tube / Fins: T2 copper strip.
2. Copper Fin on Steel Tube: Base tube: Carbon steel or stainless steel tube / Fins: Copper strip.
3. Bronze/Brass Fin: Material: Brass (H62/H65) or Bronze (QSn6.5-0.1).
W-shaped Crimping Fins
W-type wrinkled fins (W-type Wrinkled / Corrugated Fin) are a type of reinforced heat transfer fin with a special structure. Unlike ordinary plain fins or spiral fins, their surface is pressed into continuous “W”-shaped corrugations or wrinkles during the molding process.
Crimped Fin Tube Production Line Packaging
Crimped fin tube machine will be bare loaded in two 40′ GP containers.
Port
Will be shipped from Tianjin Port,China
Lead time:
Quantity(sets) 1-1 >1
Lead time (days) 60 To be negotiated
