Crimped Fin Tube Suppliers in China
What is Spiral Wound Finned Tube or Crimped Fin Tube?
Crimped finned tube also known as cold-rolled finned tube,it is a heat transfer element commonly used in heat exchangers and coolers. It uses cold processing technology to tightly wrap the fins around the base tube, and spot welds the head to prevent the fins from falling off, thereby increasing the heat exchange area and optimizing the heat transfer path, improving the heat transfer efficiency.
Quality control for crimped finned tube
The quality of the crimped finned tube is assured by hydrostatic or pneumatic testing, eddy current testing and tensile testing to verify the mechanical bond between the inner tube and the outer fins.
Crimped finned tube surface treatment:
For caron steel tube and carbon steel strip, normally hot galvanizing after fining. The galvanized crimped finned tube highly increase the anti rust capacity.
Delivery condition:
The tube ends are square cut, free of burrs, dry and blown clean on the inside and varnished on the outside on both ends. Desiccant is also put into each package for continental shipping.
Material Standard of crimped finned tube
Both base tube and fin can be carbon steel and stainless steel
Carbon Steel: A179, A192,SA210 Gr A1/C,A106 Gr B
Stainless Steel: TP304/TP304L , TP316 / TP316L
Copper:T2
Manufacturing Range (Crimped Fin Tube/Spiral Tension Wound Fin Tube):
| Sr. No | Particulars | Range |
|---|---|---|
| 1 | Base Tube Material | Stainless Steel, Carbon Steel, Alloy Steel, Titanium, Copper, Duplex Stainless Steel, and Inconel etc. (all material in the theoretical limit) |
| 2 | Base Tube Outside Diameter | 15.88 mm to 219.00 mm OD (⅜” NB pipe to 8” NB pm) |
| 3 | Base Tube Thickness | 1.00 mm And Above |
| 4 | Base Tube Length | 500 mm Min To 30000 mm |
| 5 | Fin Material | Aluminum, Copper, Stainless Steel, Carbon Steel. |
| 6 | Fin Thickness | 0.15mm, 2.00mm |
| 7 | Fin Density | 118 FPM (3 FPI) to 433 FPM (11 FPI) |
| 8 | Fin Height | 6 mm to 25.40 mm |
| 9 | Bare Ends | As per Client Requirement |
| 10 | Manufacturing Capacity | 4,00,000 Meter Per Annum |
Spiral Crimped Fin Tube Material

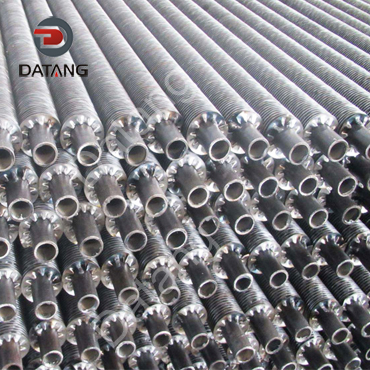

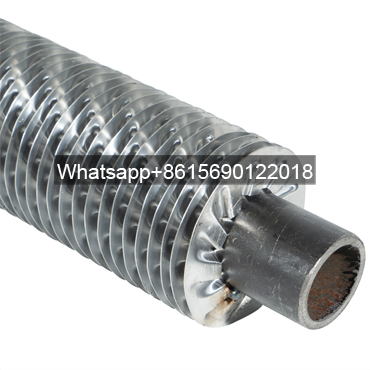

The base tube is made of carbon steel tube(A179, A192,SA210 Gr A1/C,A106 Gr B),the stainless steel fins

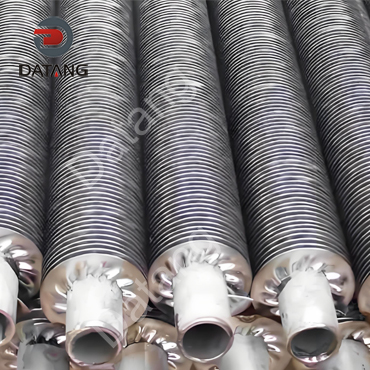

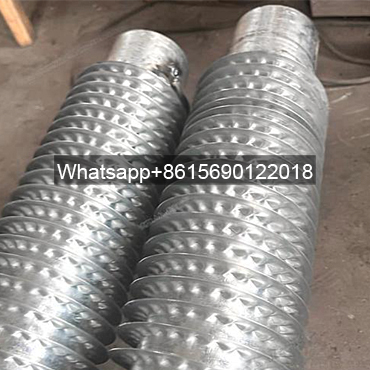

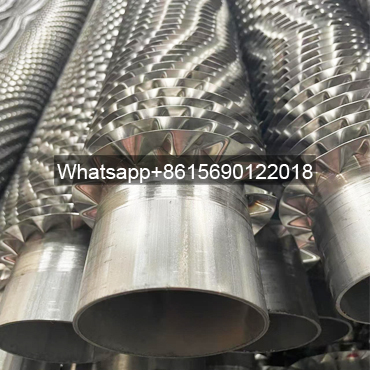

The base tube is made of stainless steel tube(TP304/TP304L,TP316 / TP316L),the stainless steel Fins

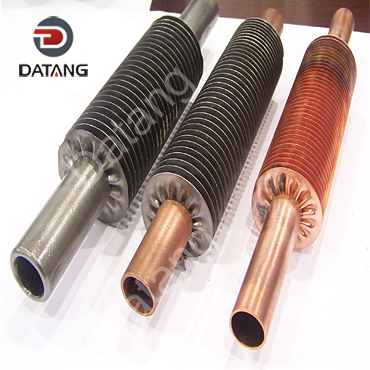

Spiral wound finned tube,The base tube is made of copper tube,the stainless steel fins

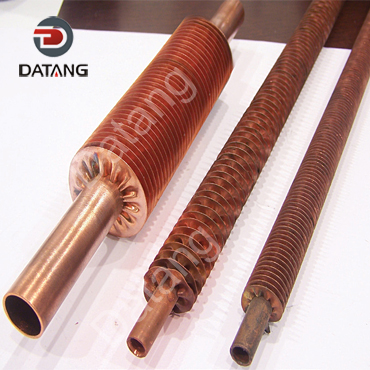

Spiral Crimped Fin Tube,the base tube is made of copper tube,the copper fins
Spiral Crimped Fin Tube By Industy
Since the stainless steel is with high corrosion resistance, the stainless steel crimped fin tube can be widely used when the circumstance has a certain degree of corrosion or cleanliness, such as climatic industry, heating, drying and cooling. Usually applied in fin tube heat exchangers.Maximum working temperature is 180℃.

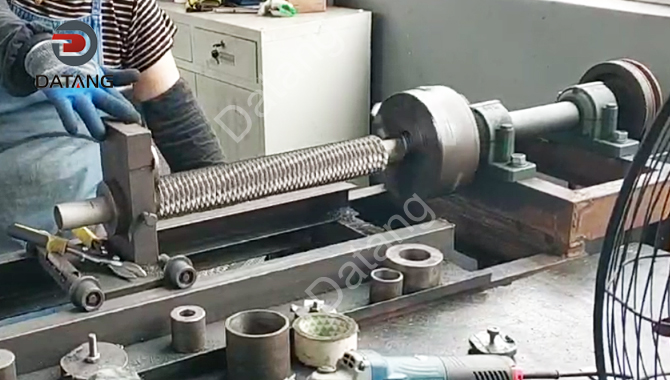

Top Features of Spiral Tension Wound Fin Tube
Datang offers the widest variety of sizes available for spiral tension wound fin tube in the industry.Its heat exchange efficiency can reach several times or even dozens of times that of ordinary heat exchangers.
1.Uniform pitch, small wrinkle, no dust accumulation
2.Small contact thermal resistance, strong heat transfer ability
3.Crimped Finned Tube can be further hot-dip galvanized to protect the surface, and the deposition of zinc also increases the efficiency of the finned tube. Maximum operating temperature 250°C.
4.Applications Commercial for air heating or air cooling up to 130°C to 150°C
Customizable Spiral Crimped Fin Tube
We can customize the material, specification and length according to your requirements.Solve your problems anytime and anywhere. Customize fin tubes and equipment according to your needs. Provide free technical guidance. Welcome to customize with drawings, so that you can purchase without worries.

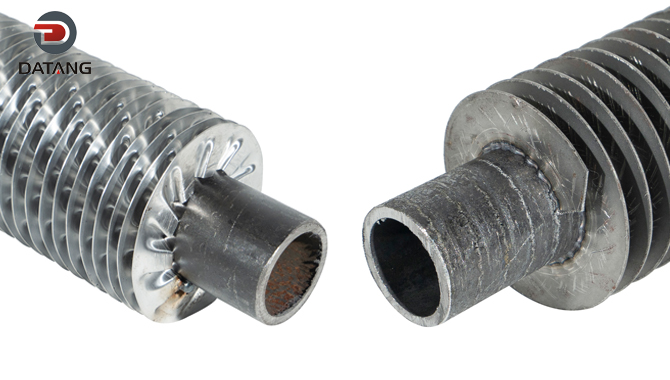

Difference Between High Frequency Welded Fin Tubes and Crimped Fin Tubes
High frequency welded fin tubes: The manufacturing process is complex, high frequency welding equipment is required, and the cost is high, but the welding is firm and not easy to loosen.
Crimped fin tubes: The manufacturing process is relatively simple, the production cycle is short, and the cost is low, but it is easy to loosen and requires regular maintenance.

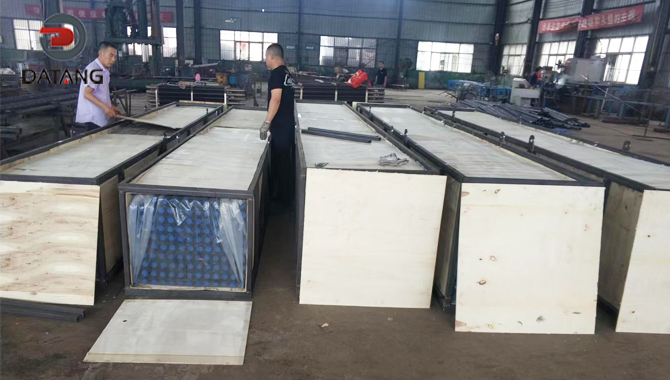

Helical Tension Wound Finned Tube Package
Payment Terms:T/T, LC
Delivery: 15-30 days after payment
Marking: Standard + Steel Grade + Size + Heat No + Lot No
Package: Iron frame packing boxes and the desiccants are put into each package for continental transportation as well. or as required
Spiral Crimped Fin Tube Quality Checks
Each of our spiral crimped fin tube is subjected to stringent quality checks.Inspection and Tests Performed:
1.Chemical Composition inspection。
2.Mechanical Properties Test(Tensile Strength, Yield Strength, Elongation, Flaring, Flattening, Hardness, Impact Test).
3.Surface and Dimension Test.
4.No-destructive Test.
5.Hydrostatic Test.
High Frequency Welded Spiral Fin Tube Application
The spiral fin tube radiator for vegetable and flower greenhouse is an efficient and durable heating equipment, especially suitable for greenhouse cultivation in cold seasons.
During the breeding and brooding process, the high-frequency welded fin tube radiator improves the heat exchange efficiency by increasing the heat dissipation area, and can raise the temperature in the brooding house to the required level in a short time. This design enables the farm to quickly reach and maintain a suitable temperature range (15-20 degrees Celsius) when heating in winter.

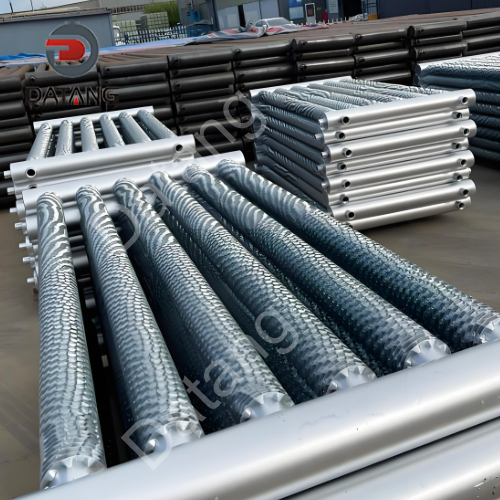

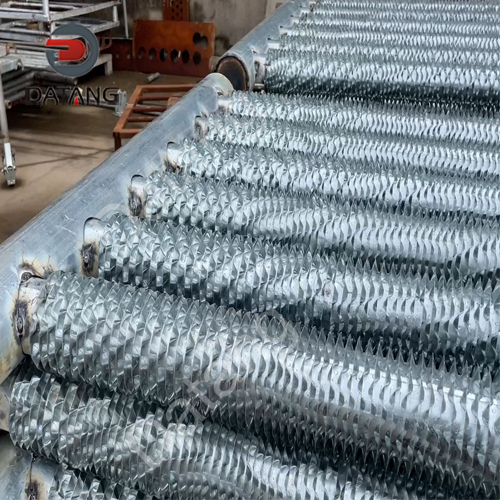

Hot-dip galvanized spiral wound fin tube for greenhouse heating, as a key component of the heating system, can efficiently and evenly transfer heat to keep the temperature in the greenhouse within a suitable range

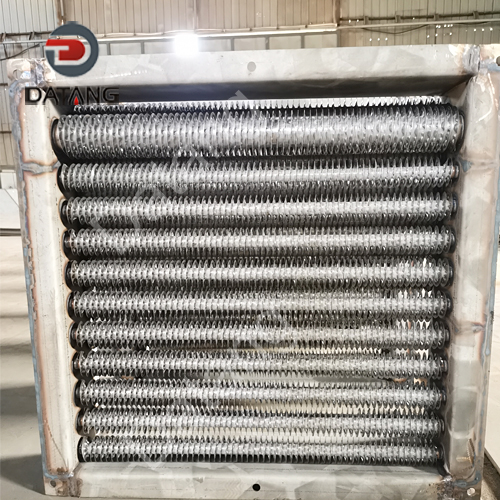

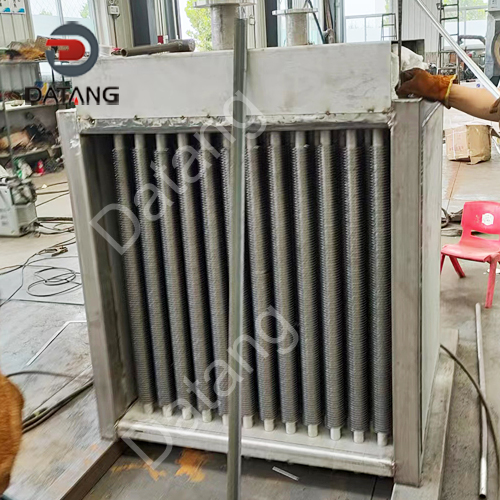

As a high-efficiency heat exchange element in modern industrial and civil heating systems, the unique design of the helical tension wound finned tube radiator for steam heating not only significantly improves the heat transfer efficiency, but also optimizes the space utilization rate, becoming an indispensable thermal energy source in many fields. equipment.
The working principle of the crimped fin tube is based on the principles of heat conduction and convection. When the hot water or steam of the heating system flows through the finned tube, the heat is quickly transferred to the heat sink through the fins and then dissipated into the air. This design makes the heat exchange more efficient and is particularly suitable for workshop environments that require a lot of heat dissipation.
Related Product
Crimped Fin Tube FAQs
A: Crimped fin tube production line 8.
A: We can provide crimped fin tube samples for free.
A: After you confirm crimped fin tube sample details, the samples will be ready for delivery in 3-7days,and will be sent to you via express and arrive in 3-5days.
A: Spiral tension wound fin tube can be customized, we can make the new thermoforming or extruding mode based on your drawings and we can sign a confidentiality agreement about your patented product, pls contact us for any further information.
A: Always a pre-production sample,before mass production;always final inspection before shipment.
Inspection & Guarantee Certificate is supplied with shipment, and the Third Party Inspection is available.
